Pet Freeze Drying Production Line – Intelligent Complete Equipment for Premium Pet Food
This pet freeze drying production line is a fully automatic complete production equipment designed specifically for the premium pet food sector. With vacuum freeze drying (FD) technology at its core, the entire dehydration process is completed in a low-temperature vacuum environment, fundamentally distinguishing it from traditional hot-processing methods such as drying, baking, and extrusion.
This pet freeze drying production line can produce a wide range of premium pet food products at scale, including pure meat freeze-dried treats, raw meaty bone freeze-dried food, complete freeze-dried staple diets, and functional freeze-dried snacks. It maximizes the retention of raw ingredients’ native nutrition, morphology, and flavor, making it the core production capacity equipment for pet food companies looking to establish premium product lines and enhance product value.
This pet freeze drying production line features a modular integrated design with a PLC intelligent central control system, achieving closed-loop automated operation from raw material pretreatment, rapid freezing, vacuum freeze drying to finished product packaging. Key parameters such as temperature, vacuum level, and drying duration are precisely controllable, ensuring strong batch-to-batch product quality consistency. It is widely applicable to new capacity construction, product line upgrades for pet food processing plants, and OEM/ODM contract manufacturing expansion.
I. Core Process Advantages
This pet freeze drying production line adopts the internationally recognized vacuum freeze drying process principle, completing ingredient dehydration through three steps: “rapid freezing – vacuum sublimation – low-temperature desorption.” The entire process involves no high-temperature damage, fundamentally ensuring premium product quality:
Deep Rapid Freezing – Lock Freshness & Preserve Form
Raw materials on trays are rapidly cooled to -35°C to -40°C, forming uniform fine ice crystals within the ingredients. This minimizes damage to cellular structures. After freeze drying, products maintain complete morphology with strong rehydration properties, restoring the original texture of fresh ingredients.
Vacuum Sublimation Dehydration – Retain Complete Nutrition
Under high vacuum conditions, precise temperature control causes ice crystals within the ingredients to sublimate directly from solid to gas for removal. The dehydration process does not pass through a liquid phase, completely avoiding nutrient dissolution loss, protein denaturation, and flavor compound volatilization. The retention rate of protein, vitamins, amino acids, and other nutrients in the finished product can reach over 95%.
Low-Temperature Desorption Drying – Long-Term Stable Storage
Following the sublimation stage, the desorption drying process removes bound water from within the ingredients through gradient heating. The final product moisture content is precisely controlled to within 5%. Combined with subsequent nitrogen flushing packaging, no preservatives are required, and the product can be stored long-term at room temperature with a stable shelf life.
Rich Native Flavor – Excellent Palatability
The freeze drying process completely preserves the original meaty aroma and texture of the ingredients. After rehydration, the product quickly returns to a fresh state, with high pet acceptance. It adapts to various premium formulations including high fresh meat, raw meaty bone, and grain-free recipes.
II. Complete Core System Configuration
The entire pet freeze drying production line is laid out in a closed-loop configuration according to the freeze drying process flow. Fully enclosed production reduces contamination risks, with seamless connection between each unit. Core systems include:
Raw Material Pretreatment System
Integrated equipment for washing, cutting, weighing, and automatic tray loading. Raw materials can be processed into blocks, granules, patties, and other forms according to product requirements, with precise quantitative loading. Adaptable to various ingredient types including pure meat, raw meaty bone, fruits & vegetables, and egg yolk.
Rapid Freezing System
High-efficiency deep cryogenic freezing chamber/freezing tunnel with branded refrigeration units. The core temperature of raw materials drops below freezing point within a short time, with fine and uniform ice crystal particles, providing a stable quality foundation for subsequent freeze drying.

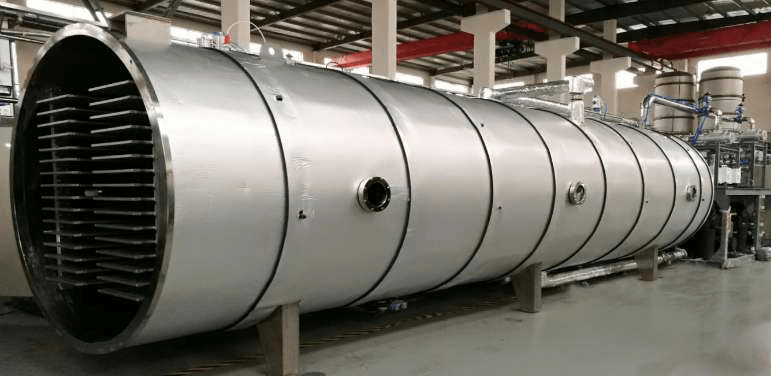

Vacuum Freeze Drying System (Core Unit)
Comprising drying chamber, high-vacuum unit, zone heating system, and refrigeration condenser system. Multi-stage temperature curve design allows precise control of sublimation temperature, vacuum level, and drying duration according to different raw material formulations. Batch materials receive uniform heating, with consistent moisture content and rehydration properties across each batch.
Discharge Tempering System
After freeze drying, products undergo stepped return to room temperature in a sealed environment. Anti-condensation protection modules prevent cold products from contacting air directly and absorbing moisture, ensuring stable compliance of final moisture content.
Screening, Grading & Quality Inspection System
Multi-stage vibrating screening with cyclone dust removal automatically removes broken particles, defective products, and dust. Optional metal detection and weight sorting modules enable online rejection of non-conforming products, ensuring uniform appearance and quality.
Aseptic Nitrogen Flushing Packaging System
Integrated equipment for quantitative filling, nitrogen flushing sealing, date coding, and cartoning. Finished products are sealed in a low-oxygen clean environment, effectively isolating oxygen and moisture, significantly extending shelf life. Supports various packaging formats including bags, cans, and boxes.
Intelligent Central Control System
PLC touch control platform with full-line parameter visualization settings and real-time monitoring. Supports storage of multiple freeze drying process curves, automatic recording of production data, and intelligent fault early warning. Simple operation reduces manual errors and labor costs.
III. Core Equipment Features
Food-Grade Safety Standards: All material contact parts are manufactured from 304/316 food-grade stainless steel. The equipment structure has no sanitary dead corners, facilitating disassembly, cleaning, and disinfection. Complies with pet food production hygiene standards and HACCP food safety management system and FDA export standards.
High Degree of Automation: Fully automatic operation from freezing to freeze drying without frequent manual intervention. Only 2-3 operators are needed for the entire line, significantly reducing labor costs and contamination risks.
Flexible Capacity Customization: Drying chamber volume covers multiple specifications from 10m² to 200m². Supports customized configurations from small-scale pilot production to large-scale mass production. Modular design facilitates future capacity expansion.
Stable Product Quality: Precise control of temperature, pressure, and time ensures consistent moisture content, morphology, and nutritional indicators across batches. High rehydration rate, complete appearance, and low broken particle rate.
Optimized Energy Efficiency: Equipped with high-efficiency refrigeration units and waste heat recovery systems. Energy consumption is lower than comparable non-standard equipment, with superior long-term operational economics.
Lower Distribution Costs: Extremely low final moisture content enables room temperature storage and transportation without the need for cold chain support, significantly reducing warehousing and logistics costs.
IV. Technical Specifications
The equipment of this line is designed and manufactured in accordance with ISO 9001 quality management system standards, ensuring world-class quality and reliability.
| Parameter | Small Scale Line | Medium Scale Line | Large Scale Line |
|---|---|---|---|
| Drying Shelf Area | 10-20m² | 50-100m² | 150-200m² |
| Batch Processing Capacity | 50-150kg | 300-800kg | 1200-2000kg |
| Condenser Min. Temperature | ≤-55°C | ≤-55°C | ≤-60°C |
| Operating Vacuum | 10-100Pa | 10-100Pa | 10-100Pa |
| Final Moisture Content | ≤5% | ≤5% | ≤5% |
| Drying Time per Batch | 18-24h | 20-26h | 22-28h |
| Total Installed Power | ~40kW | ~120kW | ~220kW |
| Operators Required | 2-3 persons | 3-4 persons | 4-5 persons |
Note: The above parameters are reference values for standard models. Customization is available based on customer raw material formulations, capacity requirements, and facility dimensions.
V. Application Areas
This pet freeze drying production line is suitable for producing a full range of premium freeze-dried pet food, including but not limited to:
- Pure meat freeze-dried treats (chicken breast, duck, salmon, egg yolk, capelin, etc.)
- Complete raw meaty bone freeze-dried staple diets (for cats/dogs)
- Functional health freeze-dried products (digestive care, coat enhancement, calcium supplementation, etc.)
- Mixed freeze-dried supplements and freeze-dried meal toppers
Widely applicable to pet food brand manufacturers’ own plants, pet food OEM/ODM contract manufacturers, and premium pet treat producers.
VI. Comprehensive Services
- Complete line solution planning with customized layout and equipment configuration based on client facility, capacity, and formulation requirements
- On-site installation and commissioning, including freeze drying process parameter adjustment and trial production guidance
- Operator technical training covering equipment operation, routine maintenance, and common fault troubleshooting
- Full equipment warranty service, long-term supply of original spare parts, and lifetime technical support
- Consulting services for freeze drying formulation optimization and production process upgrades
For a free quote and customized solution for a pet freeze drying production line tailored to your facility, please contact our sales team. We provide professional technical support and flexible financing options to help you enter the premium freeze-dried pet food market.
