Fully Automatic Hydraulic Vacuum Tumbler – Large Automatic Meat Curing Machine
Product Overview

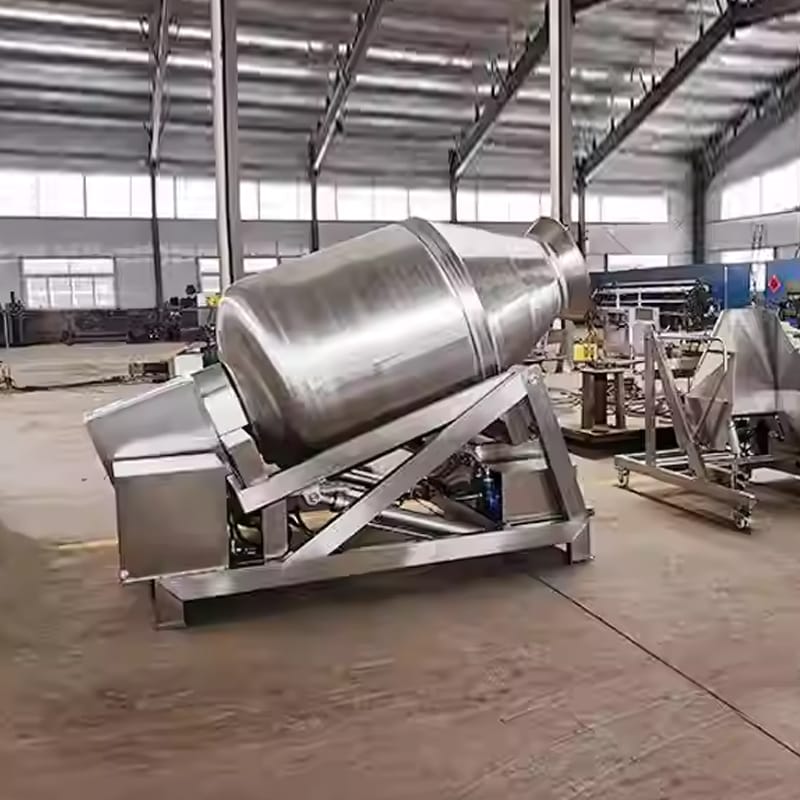

The Fully Automatic Hydraulic Vacuum Tumbler is large industrial marinating equipment made of full SUS304 stainless steel. This Fully Automatic Hydraulic Vacuum Tumbler is equipped with hydraulic automatic lid opening and drum tilting discharging structure, paired with PLC touch screen intelligent control system.
It supports constant vacuum tumbling and breathing alternating vacuum two working modes, with customizable 3–27 RPM stepless variable frequency speed. Users can set full-automatic forward-pause-reverse circulation programs. Equipped with circulating water cooling vacuum pump for long-time stable vacuum, this Fully Automatic Hydraulic Vacuum Tumbler has complete CE and FDA certification, ideal for continuous assembly line production of ten-thousand-ton meat factories and large pet food industrial parks.
Core Advantages
1 Dual Vacuum Working Modes
The Fully Automatic Hydraulic Vacuum Tumbler supports two marinating processes: constant vacuum tumbling for steak, chicken fillets; breathing alternating vacuum for whole meat, ham raw materials. Real-time vacuum gauge makes negative pressure visible and controllable.
2 PLC 7-Inch Touch Screen Programmable Control
This Fully Automatic Hydraulic Vacuum Tumbler features 3–27 RPM customizable variable frequency, can store multiple marinating formulas, one-click switch different meat production programs, effectively reduce manual operation errors.
3 Full-Auto Hydraulic Lid & Tilting Discharge
The Fully Automatic Hydraulic Vacuum Tumbler relies heavy hydraulic cylinders to finish auto lid opening and material tilting. No manual lifting required, perfectly connected with upstream feeding and downstream conveying equipment for unmanned continuous production.
4 Mirror Polished SUS304 Drum No Dead Angle
Inner drum of the Fully Automatic Hydraulic Vacuum Tumbler adopts mirror polishing, machine outer sand blasting anti-rust. Arc transition design leaves no dirt gap, fully meets EU and US food processing hygiene standards.
5 Circulating Water Cooling Vacuum Pump
The Fully Automatic Hydraulic Vacuum Tumbler is equipped with water circulation cooling vacuum pump, stable heat dissipation for 24h non-stop production. Built-in vacuum filter blocks foam impurities, effectively reduce vacuum system failure rate.
6 Direct Drive Reducer Low Noise & Long Service Life
Transmission part of the Fully Automatic Hydraulic Vacuum Tumbler uses direct connection reducer, less power loss, low noise, high efficiency, durable under long heavy load operation.
Technical Parameters
| Model | Single Batch Loading (kg including accessories) | Reducer Power (kW) | Overall Dimension (mm) | Height Requirement | Vacuum Pump Power (kW) | Variable Frequency Control System |
| Hydraulic 1700L | 1000 | 2.20 | 2600×1290×1725 | Working height ≥2500mm, automatic lid opening height ≥2650mm | 3.85 water-cooled | Standard |
| Hydraulic 2500L | 1500 | 3 | 3000×1400×2050 | Working height ≥2750mm, automatic lid opening height ≥2850mm | 3.85 water-cooled | Standard |
| Hydraulic 3500L | 2000 | 4 | 3220×1605×2215 | Working height ≥3100mm, automatic lid opening height ≥3250mm | 3.85 water-cooled | Standard |
Applicable Raw Materials & Industries
Applicable Raw Materials
Large beef steaks, whole chicken & duck, ham/bacon raw materials, large beef & mutton marinated cuts, ready-to-cook dishes, wet pet marinated food, semi-finished pickled meat.
Applicable Factories
10,000-ton large meat deep-processing factories, fully automatic central food industrial parks, large pet food production lines, beef & mutton export prepared food plants.
Certifications & Supporting Services
Our factory independently manufactures the Fully Automatic Hydraulic Vacuum Tumbler, with EU CE certification, US FDA registration and multiple food machinery patents. As integrated manufacturer & foreign trade enterprise, we supply one-stop service: customized drum volume, full export documents, on-site installation, lifelong supply of vacuum pump, hydraulic cylinder and reducer spare parts. Submit website inquiry to get quotations, operation videos and full automatic production line matching plans.
