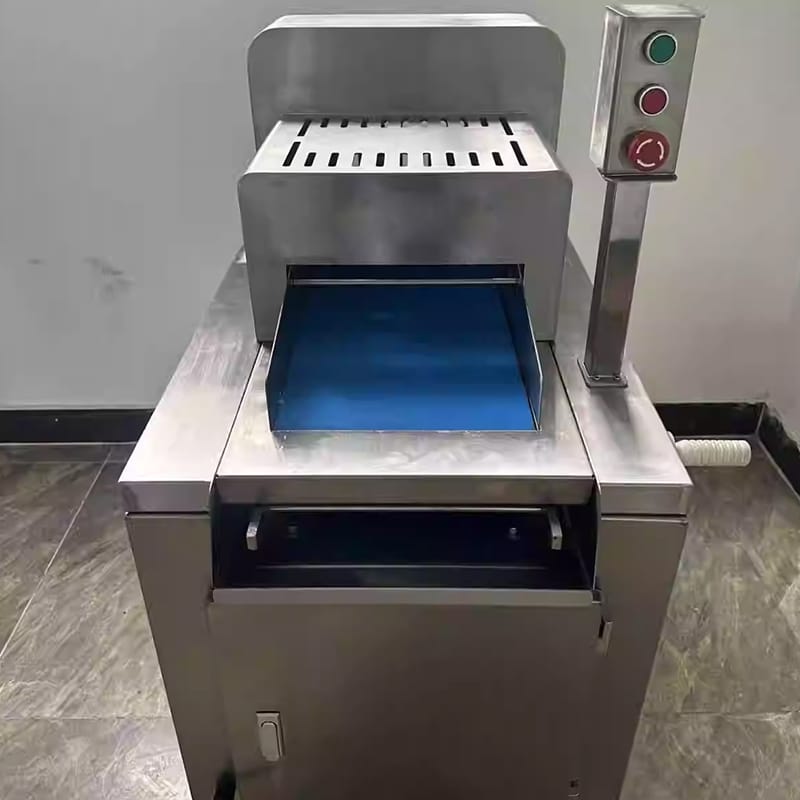

2D Frozen Meat Dicer For -18°C Unthawed Frozen Meat Cube Processing

1. Product Overview

Our 2D Frozen Meat Dicer adopts brushed food-grade 304 stainless steel frame and humanized operation layout, independently developed to dice raw -18°C frozen meat blocks without any thawing treatment. Combined with horizontal cutting blades and servo vertical cutting structure, this 2D Frozen Meat Dicer delivers uniform, tidy cubic meat cubes with consistent dimensions.

Equipped with PLC touch control system and 24VDC low-voltage safety circuit, it supports free switch between automatic mass production and manual test mode. Variable frequency speed regulation adapts to various customized dicing thickness demands. It is widely deployed in meat processing factories, pet food production plants, central prepared food workshops and braised food processing lines. Every unit of this dicer is equipped with complete CE and FDA export certification to meet global export standards.

2. Core Advantages

2.1 Full Brushed 304 Stainless Steel & Ergonomic Frame

The whole frame is made of brushed food-grade 304 stainless steel with smooth burr-free surface for easy full washing. The machine height and operation panel height follow ergonomic design standards, effectively lowering staff fatigue during long shifts of continuous dicing work with the 2D Frozen Meat Dicer.

2.2 Interchangeable Multi-Spec Blade Sets

A full range of detachable blade assemblies is available for customized cube sizes: 9 slots (31.6mm), 10 slots (28.5mm), 11 slots (25mm), 12 slots (23.1mm), 13 slots (21.2mm), 14 slots (20mm). Operators can replace blades quickly to stabilize finished cube sizes and satisfy diverse product formulas for pet food and meat processing.

2.3 Servo Motor for Ultra-Precision Fixed-Length Cutting

Vertical cutting power comes from high-precision servo motor. Cutting length can be digitally set with tiny dimensional tolerance, generating neat diced meat and greatly reducing leftover scraps to raise raw material utilization.

2.4 7-Inch Touch Screen PLC Intelligent Control

Visual 7-inch touch panel realizes one-click parameter configuration. Built-in stable operation programs make the machine simple to learn and operate for new workshop workers.

2.5 24VDC Low-Voltage Safe Electric Control

Multi-layer safety protection system is built in, including 24VDC low-voltage circuit, main power lock switch, cutting area protective cover and emergency stop button. It completely avoids electric leakage and accidental injury risks during daily operation.

Safety is our top priority. The Meat Dicer is engineered with integrated protection guards and emergency stop systems, strictly adhering to the fundamental principles of ISO 12100:2010 safety standards for food processing machinery. This ensures a secure operating environment even during high-capacity production

2.6 Auto & Manual Dual Working Modes

– Automatic mode: Input target cutting length only to start continuous large-volume production, suitable for formal mass processing. – Manual mode: Designed for machine trial run, internal inspection and equipment parameter commissioning.

2.7 High-Power Variable Frequency Cutting System

3KW heavy-duty main cutting motor provides strong shearing force. Stepless variable frequency speed adjustment freely matches frozen meat with different hardness and different dicing thickness requirements. The equipment directly processes whole frozen meat blocks without pre-thawing, removing extra thawing procedures and saving workshop storage space as well as manual labor costs.

3. Technical Parameters

– Model: 2D Frozen Meat Dicer – Overall Dimension (L×W×H): 1200×600×1400 mm – Main Cutting Motor Power: 3 KW – Conveying Motor Power: 0.75 KW – Cutting Speed: 35 ~ 82 cuts per minute – Feed Inlet Size (W×H): 300×65 mm – Net Machine Weight: 372 KG – Optional Blade Sizes: 9 slots 31.6mm, 10 slots 28.5mm, 11 slots 25mm, 12 slots 23.1mm, 13 slots 21.2mm, 14 slots 20mm

4. Applicable Industries

This dicing equipment fits multiple deep-processing sectors: frozen meat processing factories, pet wet food & diced meat snack production lines, central ready-meal kitchens, braised cooked food plants and conditioning package filling factories.

5. Certifications & One-Stop Factory Services

Our factory holds EU CE mechanical certification, US FDA workshop registration and multiple food machinery utility patents. As integrated manufacturer and foreign trade supplier, we offer customized blade sizes, complete export customs documents, overseas on-site installation & commissioning service, plus lifelong supply of genuine spare parts. Clients can submit inquiries via website forms to get quotations, operation tutorial videos and full production line matching schemes of the 2D Frozen Meat Dicer.

FAQ About 2D Frozen Meat Dicer

Q1: Can this machine dice frozen meat straight from -18°C cold storage? A: Absolutely. Our 2D Frozen Meat Dicer requires no thawing, which cuts extra labor and storage costs for pet food and meat factories.

Q2: Is this dicing machine eligible for export to Europe and America? A: Each unit is equipped with full CE certification, and our factory has FDA registration, complying with food machinery export standards worldwide.

Q3: Can I customize the cutting cube size? A: Multiple interchangeable blade sets are optional, and we support non-standard blade customization based on your product needs. Q4: What after-sales support can I get after purchasing? A: We supply on-site installation guidance, operation training and long-term supply of original factory spare parts.

If you need stable, high-efficiency frozen meat cube processing equipment for meat or pet food production, contact our technical engineers to get detailed quotation and matching layout plan of the 2D Frozen Meat Dicer. Send your daily output demand for free professional consultation.
