Full Product Introduction
1. Product Overview

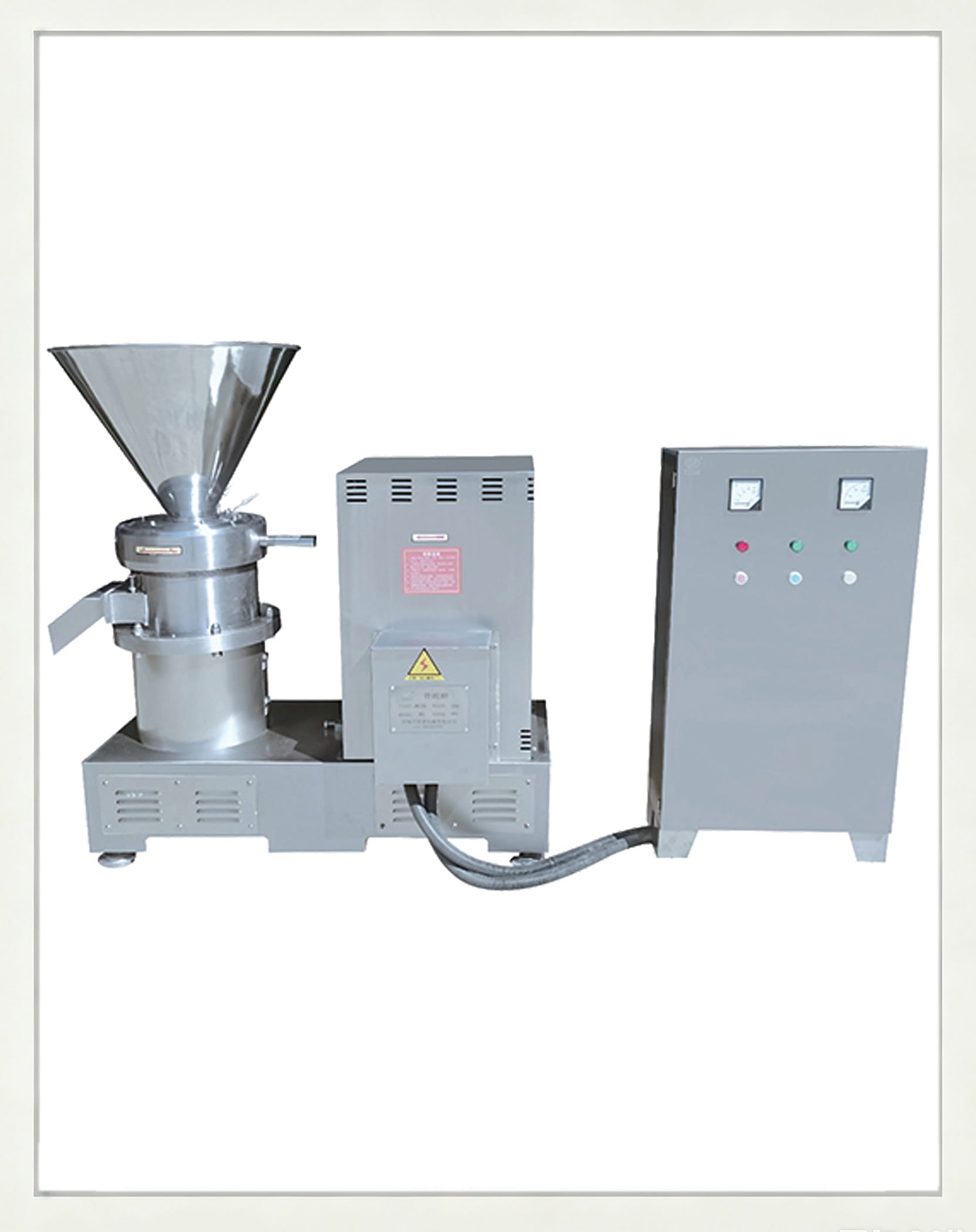

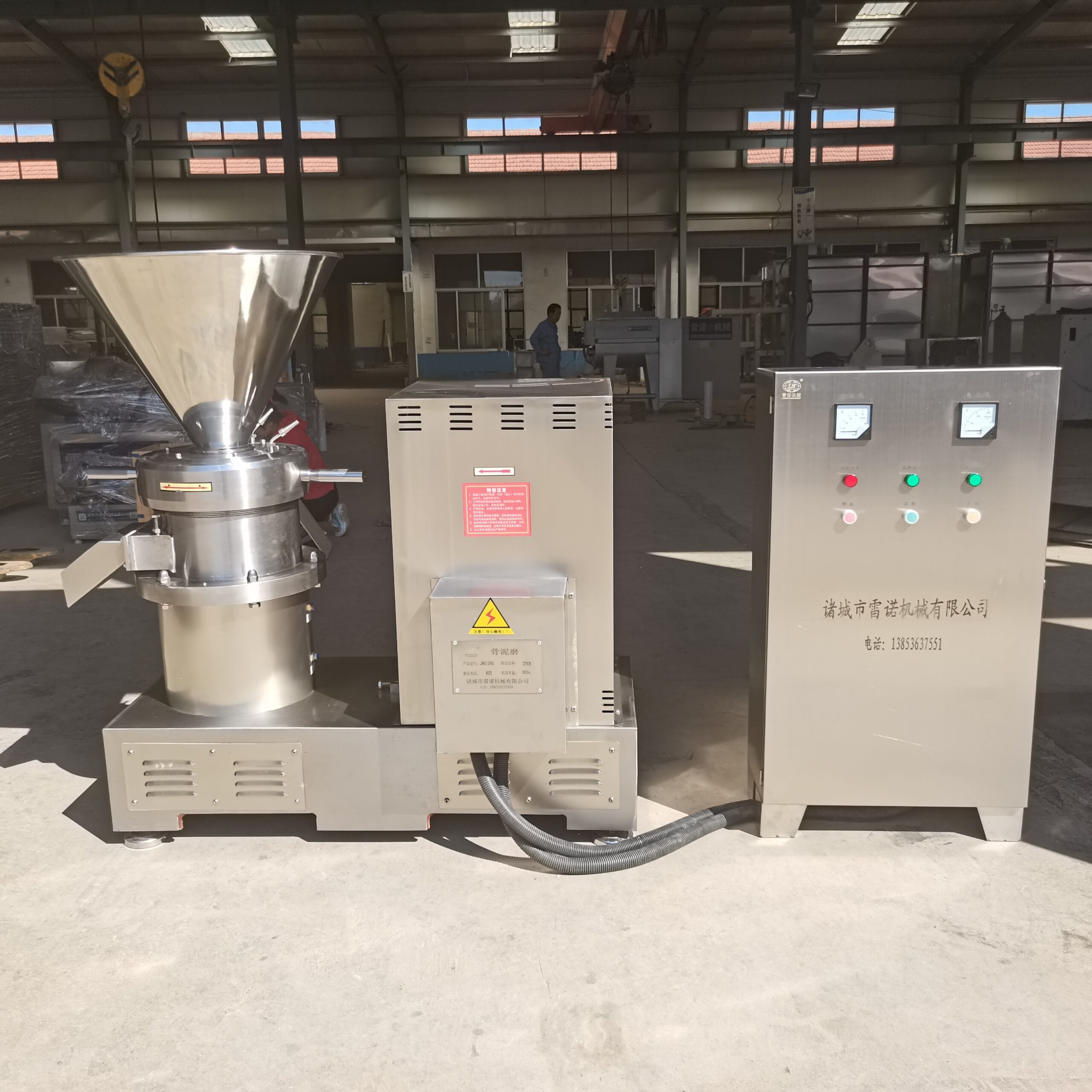

The bone paste mill is special ultra-fine deep-processing equipment for fluid and bone-meat mixed materials. It integrates multiple functions of homogenizer, ball mill, three-roll mill, shearer and mixer, realizing integrated processing including ultra-fine crushing, dispersion emulsification and homogeneous mixing.
After grinding, material particle size reaches 2–50 microns with homogenization degree above 90%. It serves as core equipment for ultra-fine refining of bone paste and meat paste. Suitable for fine grinding of chicken bones, duck bones, fish bones, fish paste, chicken slurry, shrimp paste, various pet wet food and canned bone-meat raw materials.
After grinding, material particle size reaches 2–50 microns with homogenization degree above 90%. It serves as core equipment for ultra-fine refining of bone paste and meat paste. Suitable for fine grinding of chicken bones, duck bones, fish bones, fish paste, chicken slurry, shrimp paste, various pet wet food and canned bone-meat raw materials.
2. Equipment Features
- All core components adopt premium SUS304 food-grade stainless steel, corrosion-resistant, non-toxic and odorless, complying with food export hygiene standards.
- Rotors and stators are precisely machined and treated with special heat treatment. Compared with ordinary colloid mills, it runs at higher speed with faster discharging. The grinding teeth feature high hardness and excellent grinding precision for extended service life.
- Customizable rotors & stators with different materials and grinding/shearing tooth profiles, compatible with soft & hard bones and meat materials for wide processing range.
- High-speed ultra-fine grinding thoroughly emulsifies and refines bones to retain calcium nutrition inside bones; finished paste is smooth without hard particles.
- Multi-model graded capacity covers small workshops up to large-scale pet food and meat product factories; capable of linked operation with frozen meat preprocessing production lines.
3. Technical Parameters
| Model | Grinding Fineness (Mesh) | Hourly Capacity (kg/h) | Motor Power (kw) | Standard Voltage | Rotor Speed (r/min) | Rotor Diameter (mm) | Overall Dimension L×W×H (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| GN-110 | 100–200 | 150–200 | 7.5 | 380V | 3700 | 110 | 700×430×980 | 300 |
| GN-130 | 100–200 | 200–400 | 15 | 380V | 3700 | 130 | 830×440×1100 | 400 |
| GN-180 | 100–200 | 600–1000 | 18.5/22 | 380V | 3700 | 180 | 830×490×1100 | 420 |
| GN-240 | 100–200 | 1000–1500 | 45 | 380V | 3700 | 240 | 1320×500×1280 | 1000 |
| GN-300 | 60–200 | 3000–4000 | 90 | 380V | 3700 | 300 | 1440×630×1420 | 1600 |
4. Applicable Industries
Pet food factories: grinding of chicken frames, cattle & sheep bones, frozen bone-meat for pet wet food and cans;
Deep-processing meat enterprises: fine emulsification of bone paste, fish paste and shrimp paste;
Bone soup & sauce factories: one-step coarse crushing and fine grinding line for frozen livestock & poultry bones.
Deep-processing meat enterprises: fine emulsification of bone paste, fish paste and shrimp paste;
Bone soup & sauce factories: one-step coarse crushing and fine grinding line for frozen livestock & poultry bones.
Matching Equipment
Frozen Meat Preprocessing Connected Line, Commercial Meat Grinder, Heating Mixing Tank, Transfer Pump
