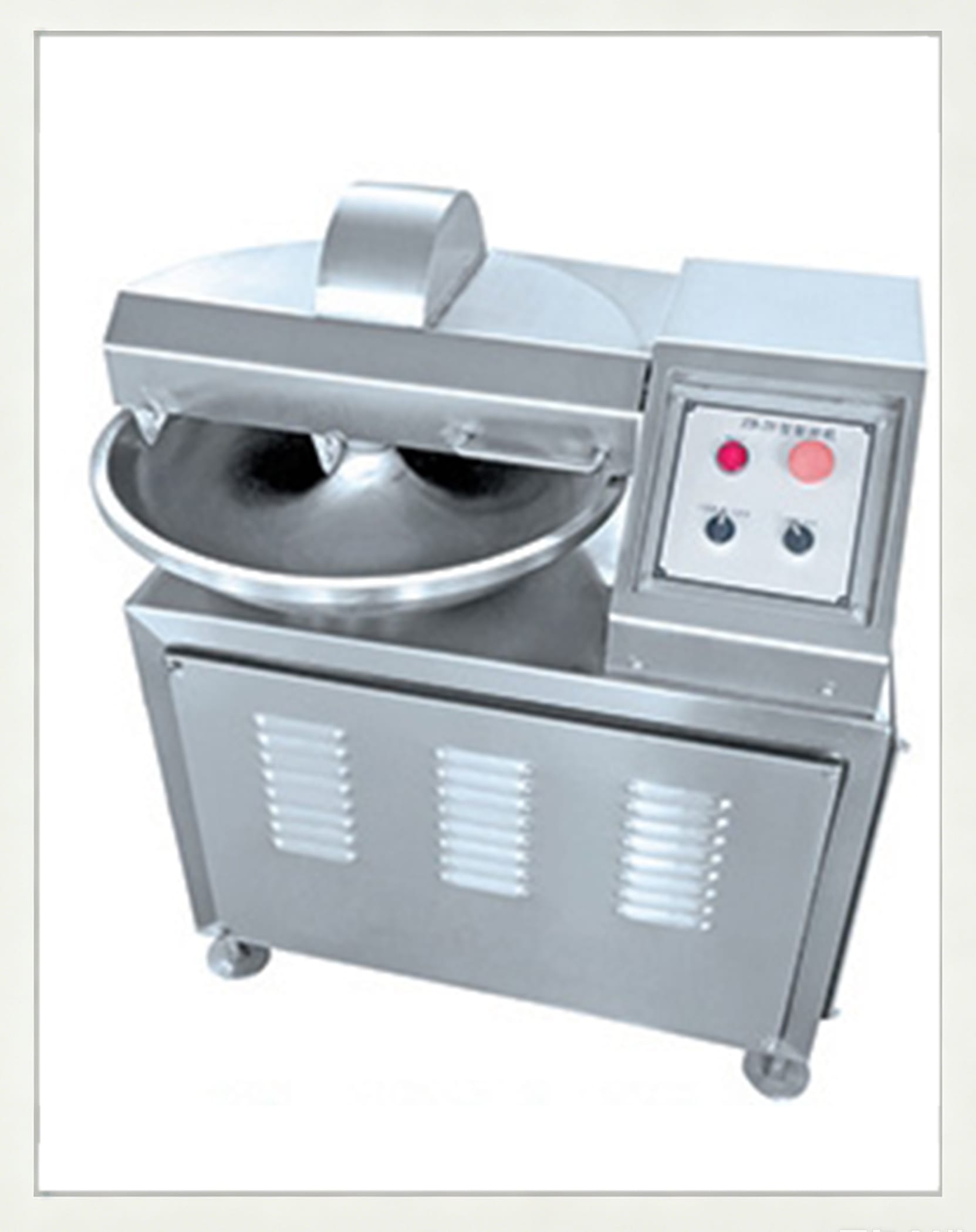

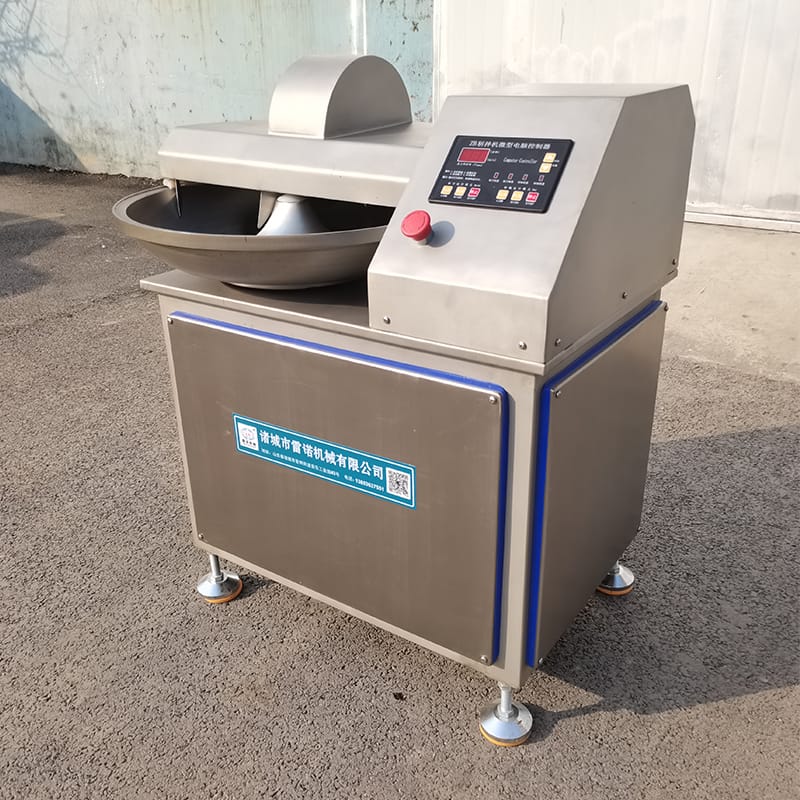

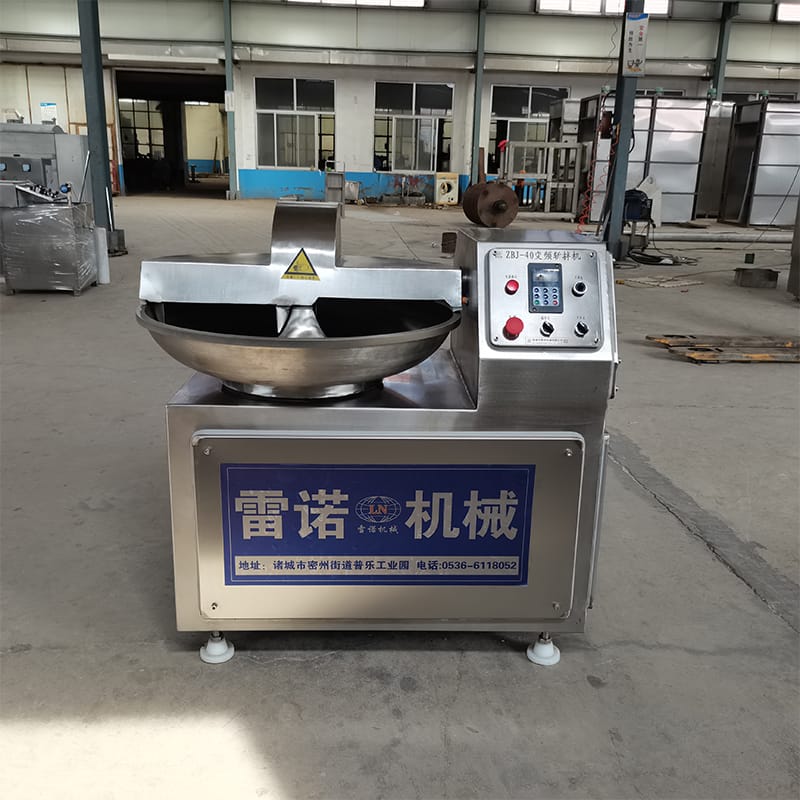

20L / 40L Bowl Cutter – Variable Frequency Meat Bowl Chopper
Core Advantages
1. 0–3000 RPM Stepless Variable Frequency Regulation
This bowl cutter supports stepless adjustable blade speed ranging from 0 to 3000 RPM, fully matching small-batch production demands of delicatessens, meatball workshops and fresh food retail stores. It is equipped with three 5mm thick cutting blades with 110mm arrangement width for stable fine chopping.
2. Low-Temperature Emulsification, Better Product Texture
Adopting low-temperature chopping structure, this bowl cutter generates little heat during processing. Raw materials finish emulsification quickly to greatly boost the fineness and elasticity of sausages, fish balls and surimi products.
3. Compact SUS304 Full Stainless Steel Structure
The whole body of our bowl cutter is made of food-grade SUS304 stainless steel, compact in size to save workshop space. It comes with an automatic discharging device, enabling easy single-person operation and quick daily cleaning.
4. Two Optional Cutting Blades for Different Products
This bowl cutter provides two interchangeable blade styles for different production needs:
- Crescent blades: Produce smooth fine meat batter, suitable for ham, sausage and fish tofu;
- Serrated blades: Create grainy meat texture, perfect for meatballs and grilled sausages.
Technical Parameters
| Model | Single Batch Capacity | Overall Dimension (mm) | Blade Qty | Blade Speed (r/min) | Bowl Speed (r/min) | Discharge Rotation Speed | Voltage | Total Power | Main Motor | Bowl Motor | Discharger Power |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Variable Frequency ZB-20 | 10kg | 780×600×850 | 3 | 0–3000 | 12 | 83r/min | 380V 50Hz | 3.55KW | 3KW | 0.55KW | 0.55KW |
| Variable Frequency ZB-40 | 20kg | 1100×880×1080 | 3 | 0–3000 | 12 | 83r/min | 380V 50Hz | 4.55KW | 4KW | 0.55KW |
Application Scenarios
Our 20L / 40L bowl cutter fits fresh food retail stores, small cooked food workshops, fish and shrimp ball processing factories, and small production lines for hot dogs and table sausages.
Certifications & Supporting Services
Our factory independently produces this bowl cutter, with EU CE certification and US FDA registration, holding multiple food machinery utility patents. As integrated manufacturer and foreign trade supplier, we offer one-stop solutions: customized blades, complete export documents, on-site installation and lifelong spare parts supply.
Submit the website inquiry form to get quotations, operation videos and matched small food production line schemes.
