Product Overview

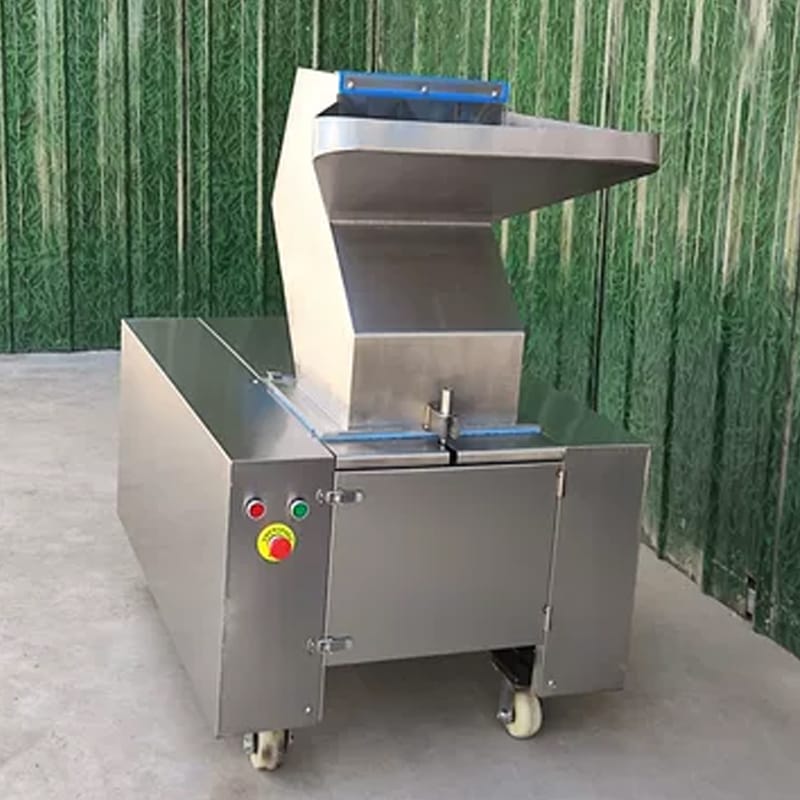

The Industrial Bone Crusher PG series is professional crushing equipment for meat deep processing. It is specially designed to crush cattle, sheep, pig, fish and various livestock & aquatic bones. Made of full food-grade SUS304 stainless steel, this Industrial Bone Crusher features high crushing efficiency, uniform particle output and stable safe operation. Widely used in pet food factories, bone soup workshops, meat processing plants and feed production lines, the machine holds CE and FDA export certifications.
Core Advantages
Optimized Cutter Structure, Strong Crushing Capacity
The cutter frame adopts optimized force distribution to enhance shear and impact force, enabling fast crushing of thick, hard and large animal bones for stable high-efficiency production.
Optimized Cutting Angle, Uniform Bone Granules
Precisely adjusted cutter angle avoids extrusion agglomeration. Crushed bone particles are even and lump-free, perfectly suitable for bone mud, bone paste, bone soup and pet food processing.
Soundproof Stainless Steel Hopper, Low Noise Operation
Fully stainless steel feeding bin with sound and vibration insulation effectively reduces working noise, improving workshop operating environment.
Heat-Treated Alloy Blades, Wear-Resistant & Reusable
High-temperature heat-treated alloy blades deliver excellent wear and impact resistance. Adjustable cutter base allows repeated blade polishing, greatly extending service life. Custom stainless steel blades are available.
Dual Electrical Safety Protection
Built-in motor overload protection and bin interlock power-off system ensure automatic shutdown during material blockage or cover opening, maximizing operator safety.
Support Automatic Conveyor Matching, Labor Saving
This Industrial Bone Crusher can be equipped with conveyor lines to realize automatic feeding and discharging, reducing manual labor and realizing continuous production.
Compact Structure, Easy Cleaning & Low Loss
Detachable compact structure enables quick disassembly and water rinsing. Low-temperature operation prevents material adhesion, and bone granule thickness can be fully customized.
Industrial Bone Crusher Technical Parameters
Model | Hourly Output (kg/h) | Feed Inlet Size (mm) | Motor Power (kW) | Machine Weight (kg) | Overall Dimension (L×W×H mm) |
|---|---|---|---|---|---|
PG-150 | 20–60 | 150×200 | 2.2 | 130 | 800×500×950 |
PG-230 | 30–100 | 250×210 | 4 | 280 | 950×600×1200 |
PG-300 | 80–200 | 300×210 | 5.5 | 340 | 1000×700×1300 |
PG-400 | 150–400 | 380×250 | 7.5 | 420 | 1000×850×1400 |
PG-500 | 200–600 | 500×250 | 11 | 600 | 1200×1000×1500 |
PG-600 | 300–900 | 600×320 | 15 | 800 | 1650×1200×1700 |
PG-800 | 800–2200 | 800×650 | 22 | 2000 | 2400×1500×2400 |
PG-1000 | 1000–4000 | 1000×800 | 37 | 4000 | 2400×1800×2500 |
Note: Custom feed inlet size and blade material available.
Applicable Raw Materials & Industries
Crushable Raw Materials
Cattle bone, sheep bone, pig bone, chicken & duck bones, sea fish bones, frozen whole bones and meat-attached bone chunks.
Applicable Scenarios
Pet food processing factories, bone soup workshops, livestock deep processing plants, animal feed production lines, bone mud food factories and large slaughterhouses.
Certifications & Supporting Services
Our factory holds EU CE certification, US FDA registration and utility model patents. Our Industrial Bone Crusher supports customized inlet size, blade material and automatic conveying systems. We provide full export documents, on-site installation & commissioning, and lifelong supply of original spare parts.
Contact our engineers via website form for quotations, real operation videos and complete production line matching schemes.
