Pet Meat Chip Production Line (Composite Meat Slice & Meat Jerky Snack)

The Pet Meat Chip Production Line — this fully automatic Pet Meat Chip Production Line is a complete set of automatic snack‑processing equipment built by LongerFM adopting mature low‑temperature baking technology. It is specially developed for thin‑sheet, crispy composite meat pet snacks.

This Pet Meat Chip Production Line enables mass production of popular pet snacks including pure‑meat slices, multi‑ingredient composite meat chips, flavoured crispy meat slices and functional thin meat chewing treats. It is specially developed for thin‑sheet, crispy composite meat pet snacks.

It enables mass production of popular pet snacks including pure‑meat slices, multi‑ingredient composite meat chips, flavoured crispy meat slices and functional thin meat chewing treats. It meets production demands for in‑house brand factories and OEM processing workshops to launch differentiated snack products.

Frozen chicken breast, duck breast, beef, mutton, poultry‑livestock offal and meat‑grain composite materials are applicable raw materials, which can be fed directly without complete thawing.

The full closed‑loop automatic production flow: frozen meat unpacking & feeding → enclosed chain‑plate conveying unit → multi‑stage frozen‑meat fine grinding unit → high‑speed vacuum chopping and emulsifying system → servo mould pressing forming machine →

sectional constant‑temperature tunnel baking oven → multi‑layer gradient drying & dehydration unit → automatic flavour powder spraying & coating device → cooling and levelling conveyor → quantitative sealing packaging equipment → integrated metal detector & weight rechecking machine → storage & delivery of qualified products.

1. Detailed Introduction of Key Process Sections

1.1 Raw Material Pre‑treatment Section

The whole pre‑treatment unit adopts fully‑enclosed design. Equipped with thick food‑grade stainless‑steel chain‑plate elevator, it prevents the spread of meat odour during conveying. The dual‑stage structure of coarse crushing plus super‑fine grinding is optimised for fascia‑rich and high‑fat frozen meat.

It produces lump‑free and fibre‑agglomeration‑free meat paste to lay a solid foundation for subsequent vacuum chopping. It supports stable processing of pure meat, meat‑grain blends and offal‑composite raw materials with wide material adaptability.

1.2 High‑speed Vacuum Chopping & Emulsifying Section (Core for Crispy Texture)

Equipped with negative‑pressure vacuum chopping host, high‑speed shearing eliminates internal air bubbles inside meat paste under vacuum condition. Meat, fruit‑vegetable powder and functional nutritional additives are fully blended to obtain smooth, non‑delaminating and non‑oil‑separating meat batter. It avoids holes, hollow structure and local hardening after baking.

Formed thin sheets feature uniform texture and consistent crispness, greatly improving palatability and reducing extra attractant dosage, which is the core guarantee for stable performance of the Pet Meat Chip Production Line.

1.3 Servo Mould Press‑forming Section

The forming host supports multiple sets of quickly‑replaceable standard moulds. Custom shapes such as round, square, bone‑shaped, heart‑shaped and special‑shaped thin meat slices are available.

Mould thickness can be steplessly adjusted from 0.8 mm to 3 mm. Servo uniform discharging ensures thickness tolerance ≤0.1 mm. Produced sheets are flat without edge curling or breakage. Continuous stable output generates minimal leftover scraps and greatly improves raw‑material utilisation rate, bringing high yield benefit for the Pet Meat Chip Production Line.

1.4 Sectional Constant‑temperature Baking & Gradient Drying Section

Adopting double‑layer independent temperature‑control tunnel baking structure, it is divided into three zones: surface setting zone, internal curing zone and low‑temperature dehydration zone with controllable mild heating ranging from 65 ℃‑95 ℃. Different from high‑temperature frying, it avoids acrylamide risk.

Low‑temperature setting locks meat aroma first, then gradient heating slowly removes excess internal moisture to achieve uniform dryness, stable crisp and chewable texture. Native protein and amino acids of meat are well preserved without destroying natural meat flavour.

Supporting waste‑heat recovery system reduces overall energy consumption by around 28 %, delivering lower operating cost for long‑time running of the Pet Meat Chip Production Line.

1.5 Automatic Coating, Cooling, Quality Inspection & Packaging Section

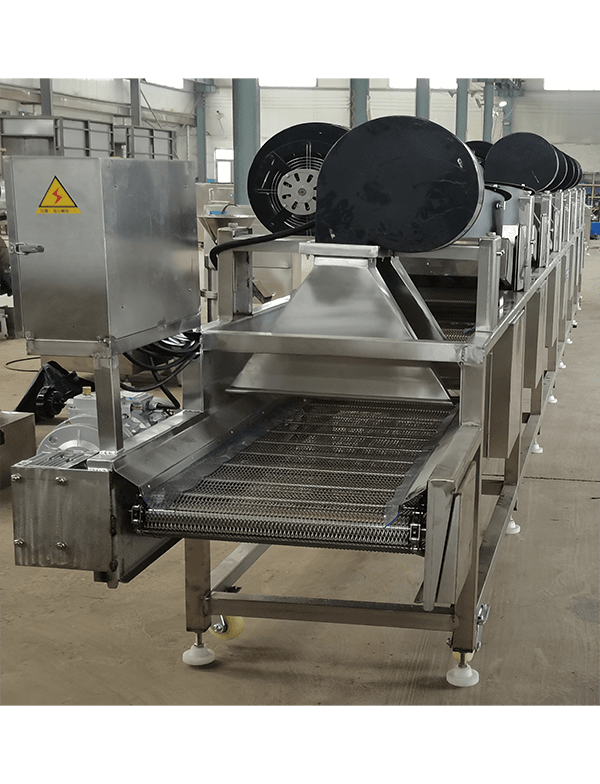

After baking and drying, thin meat slices are rapidly cooled and shaped via air‑cooling tunnel, then delivered to automatic powder‑spraying machine. Flavour coatings such as chicken powder, goat milk powder and fruit‑vegetable seasoning can be evenly sprayed with firm adhesion without powder dropping.

After cooling and levelling, semi‑finished products are automatically transported to packaging station. Compatible with vertical / horizontal packaging machines for mass sealing of stand‑up pouches and three‑side‑seal snack bags.

Integrated metal detection and weight rechecking automatically reject defective goods with leaking seal, insufficient weight or metal impurities. Unmanned online inspection guarantees high finished‑product pass rate.

2. Material & Standard Configuration

All material standards of the Pet Meat Chip Production Line strictly follow food‑grade requirements.All parts in direct contact with meat batter, semi‑finished and finished products including hoppers, chopping blades, chopping pots, forming moulds, conveying mesh belts and baking inner liners are made of mirror‑polished SUS304 food‑grade stainless steel with no sanitary dead corners.

High‑pressure water washing is supported, complying with HACCP and export‑oriented pet‑food sanitary audit standards. The outer load‑bearing frame uses thickened 201 stainless steel to balance structural stability and procurement cost.Integrated PLC touch control cabinet supports both Chinese and English languages, storing more than 80 groups of pre‑set formula programs for various meat products.

One‑click recall for chicken, duck, beef‑mutton blend and offal crisp recipes. Custom global voltage: 220V/50Hz, 380V/50Hz, 415V/60Hz.Modular capacity options: 300 kg/h, 800 kg/h, 1500 kg/h. Compact side‑by‑side layout can be customised according to plant dimension, suitable for small‑and‑medium‑sized snack workshops as well as large‑scale professional pet‑snack factories.

3. Five Core Product Advantages

Low‑temperature baking without frying, healthy crisp texture with high palatability from Pet Meat Chip Production Line

Sectional hot‑air baking without oil frying delivers low‑fat finished snacks. Low‑temperature process retains original meat aroma. Uniform thin‑sheet crisp texture suits kittens, adult dogs and senior pets. High‑end snack items bring larger profit margin.

Vacuum chopping technology, stable forming & low material waste

Negative‑pressure emulsification eliminates air bubbles in meat batter for flat and intact pressed sheets with precise thickness control. Scrap loss during production is controlled within 3 %, lowering raw‑material cost and improving plant profit.

Flexible multi‑specification production with fast mould changeover

No main‑equipment replacement required. Only change forming moulds and adjust baking temperature curve to switch between thin meat chips of different thickness, shape and flavour. Single production line covers multiple hit‑snack SKUs and avoids heavy investment in multiple sets of equipment.

Fully‑enclosed clean production line, easy‑to‑clean for factory audit pass

Exposed processing components can be quickly disassembled without material‑trapping dead corners. Basic line‑wide cleaning can be finished within 15 minutes. Meets strict sanitary audit requirements for export brands and supermarket‑supplied snacks, preventing mildew and cross‑odour contamination.

24‑hour continuous stable production, complete turn‑key service

Key motors, temperature sensors and servo components adopt internationally‑renowned brands. Reinforced machine frame supports long‑term non‑stop industrial production.

Pre‑shipment real‑machine test videos with frozen raw materials are supplied. Free CAD plant layout drawing and utility matching drawings for water‑steam‑electricity are provided. For large overseas orders, engineers can be dispatched for on‑site installation and full‑staff operation training.

4. Application Scenarios

The Pet Meat Chip Production Line is suitable for professional pet‑snack manufacturers, in‑house brand OEM workshops and dedicated production lines for e‑commerce hit‑snack items.

Used for mass production of pure chicken crisps, composite grain‑meat chips, beef‑mutton‑flavour thin jerky, nutrient‑rich offal chewing slices. The line can be expanded with mixing tanks and automatic oil‑spraying system to upgrade into high‑end production line for sandwich thin‑meat chips and multi‑layer composite meat crisps.

5. After‑sales Support

One‑year full‑range warranty covers all core components: chopping host, forming machine, baking tunnel, PLC electric control system and servo filling units.

Complete Chinese‑English operation manuals, equipment‑cleaning guides, baking‑parameter tuning tutorials and troubleshooting videos are delivered.

7×24‑hour multi‑lingual remote technical support for online tuning of baking temperature, forming thickness and powder‑spraying parameters.

Long‑term supply of original wearing parts at factory price after warranty expiration. Fast international logistics avoids production shutdown risk.

Call To Action

If you need a customised solution for Pet Meat Chip Production Line matching your output, raw‑material type (pure meat / meat‑grain composite / offal), finished‑sheet specification and workshop dimension, our engineers will provide free workshop layout drawings and detailed quotation within 24 hours.
