Full Product Introduction
1. Product Overview

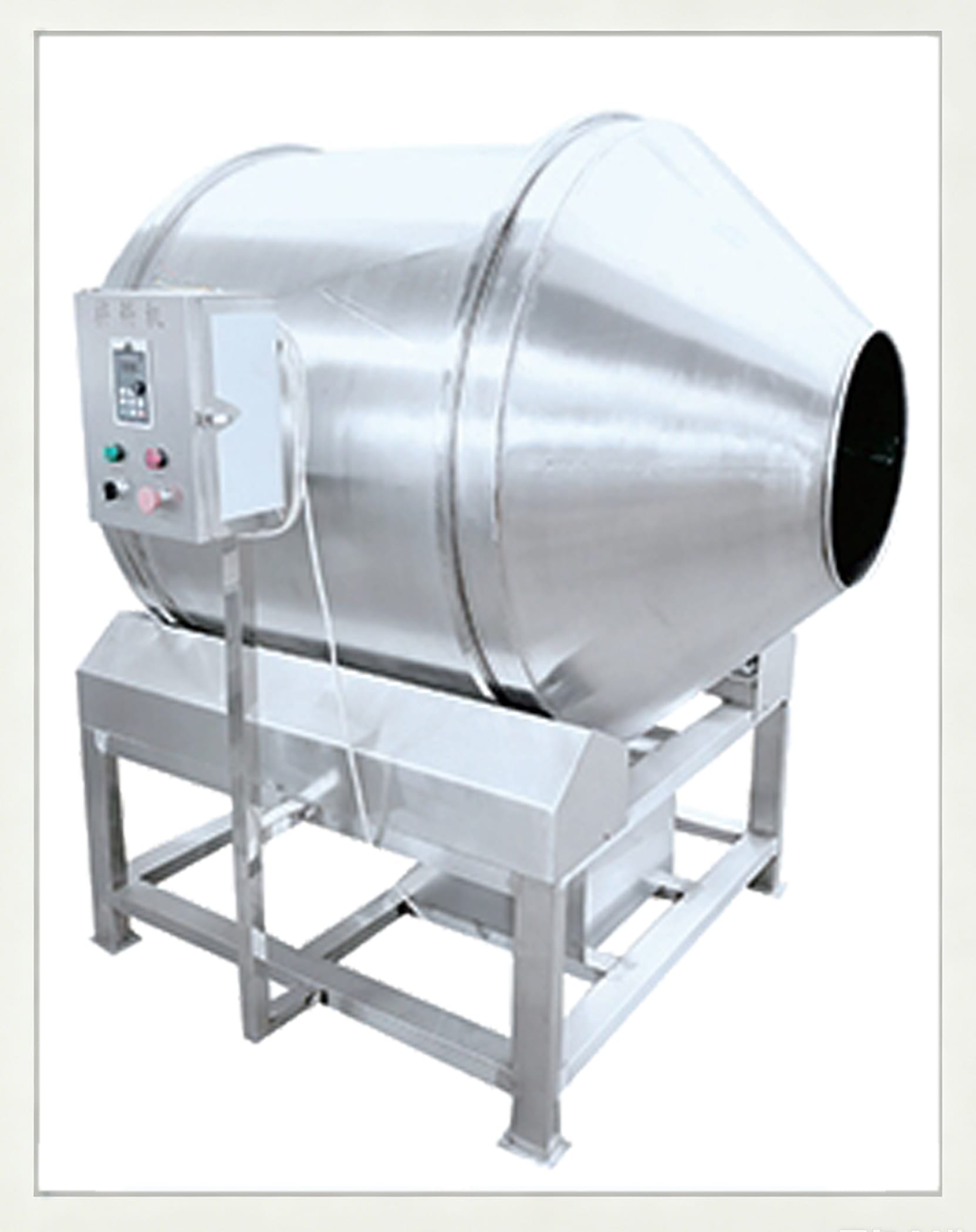

The horizontal drum mixer is widely used for mixing seasonings, snack foods, potato strips & chips, powder materials, braised meat chunks, prepared meat products and pet meat pellets.
Raw materials and marinades are thoroughly blended via drum tumbling rotation. It features broad material compatibility and suits mixing processes for wet & dry materials, granules and chunks.
Optional automatic feeding hopper enables automatic feeding and automatic tipping discharging. The drum and frame are fully constructed of food-grade SUS304 stainless steel. Smooth inner surface without dead corners allows easy water washing, greatly lowering labor intensity and boosting batch mixing efficiency.
Raw materials and marinades are thoroughly blended via drum tumbling rotation. It features broad material compatibility and suits mixing processes for wet & dry materials, granules and chunks.
Optional automatic feeding hopper enables automatic feeding and automatic tipping discharging. The drum and frame are fully constructed of food-grade SUS304 stainless steel. Smooth inner surface without dead corners allows easy water washing, greatly lowering labor intensity and boosting batch mixing efficiency.
2. Core Advantages
- Tumbling drum mixing achieves uniform material kneading; marinades adhere evenly without local uneven mixing.
- Full SUS304 stainless steel construction, resistant to acid & alkaline marinade corrosion, meets food export hygiene standards.
- Optional automatic feeding unit for fully automatic feeding & discharging to reduce manual handling.
- Stable low-noise operation; variable frequency adjustable mixing duration, one-key completion of full mixing cycle.
- Two volume options available, suitable for medium & small deli factories and pet snack manufacturers.
- Simple disassembly; the drum can be directly cleaned with high-pressure water gun, saving time on daily cleaning and maintenance.
3. Technical Parameters
| Model | Drum Volume (L) | Main Shaft Speed (r/min) | Motor Power (kw) | Overall Dimension L×W×H (mm) | Net Weight (kg) |
|---|---|---|---|---|---|
| JB-600 | 600 | 27 | 1.5 | 1400×1000×1600 | 230 |
| JB-800 | 800 | 27 | 2.2 | 1600×1400×1800 | 280 |
4. Applicable Industries
Braised food factories: marinating & mixing for braised meat chunks, chicken feet, duck products;
Prepared fried food factories: coating and seasoning for chicken nuggets, popcorn chicken, potato strips;
Snack food workshops: seasoning mixing for dried meat, meat jerky, puffed food;
Pet food factories: blending powder seasonings for meat pellets, freeze-dried treats, bone-meat snacks;
Uniform pre-mixing of condiments and powder raw materials.
Prepared fried food factories: coating and seasoning for chicken nuggets, popcorn chicken, potato strips;
Snack food workshops: seasoning mixing for dried meat, meat jerky, puffed food;
Pet food factories: blending powder seasonings for meat pellets, freeze-dried treats, bone-meat snacks;
Uniform pre-mixing of condiments and powder raw materials.
Matching Equipment
Continuous Drum Breading Machine, Smoking Oven, Planetary Cooking Mixer, Meatball Forming Machine
