Medium Frozen Meat Grinder JR-100/120/130/160 – 500-3000kg/h Industrial Meat Mincing Equipment
I. Medium Frozen Meat Grinder Product Overview
The Medium Frozen Meat Grinder JR-100/120/130/160 series adopts the classic Dutch CFS meat processing equipment design concept. Equipped with an integrated auger structure, it can directly process -18°C unthawed frozen meat, while also handling fresh meat, fruits, vegetables, and composite auxiliary materials. The entire Medium Frozen Meat Grinder is made of food-grade SUS304 stainless steel with an arc-shaped design that is easy to clean, complying with EU food hygiene standards. It comes standard with multiple safety protections and a quick-release structure for easy operation and simple maintenance. It is widely suitable for small and medium-sized meat processing plants, pet food processing plants, central kitchens, and other scenarios.
The Medium Frozen Meat Grinder JR-100 (500kg/h), JR-120 (1000kg/h), JR-130 (2000kg/h), and JR-160 (3000kg/h) are four main models, fully covering the diverse production needs of small and medium-sized meat processing, pet food, central kitchens, and more.
II. General Core Advantages
Integrated Auger Structure, Direct Processing of Frozen Meat
Equipped with an integrated auger design that combines crushing and discharging, it can directly process -18°C unthawed frozen meat while also handling fresh meat, fruits, vegetables, and composite auxiliary materials. The versatile design of this Medium Frozen Meat Grinder meets various raw material processing needs.
Forward and Reverse Rotation + Emergency Stop System
Standard forward and reverse rotation functions facilitate the cleaning of leftover materials in the hopper; the emergency stop button ensures the safety of equipment and personnel in unexpected situations. The safety control system of this Medium Frozen Meat Grinder makes production more secure.
Optimized Auger Design, Excellent Discharge Quality
Optimized auger pitch and compression ratio ensure smooth and uniform discharge. The meat granules are distinct with neat edges, effectively preventing the raw materials from becoming greasy or mushy. All Medium Frozen Meat Grinder in this series ensure stable product quality.
Precision-Machined Auger + Manual Polishing
The discharge auger undergoes overall precision machining and manual polishing, resulting in a high surface finish that effectively reduces raw material friction loss and extends equipment service life. The high-precision processing of this Medium Frozen Meat Grinder guarantees long-term stable operation.
Quick-Release Structure, Dead-Corner-Free Cleaning
The auger and blade assembly can be quickly disassembled without tools, saving time and effort in cleaning and maintenance. The quick-release design of this Medium Frozen Meat Grinder significantly reduces cleaning time and maintenance difficulty.
SKD-11 Special Blades + Dutch Self-Sharpening Blade Technology
The blades of the entire series are made of SKD-11 special steel, processed through vacuum heat treatment, and combined with mature Dutch CFS self-sharpening blade technology. They feature high hardness, strong wear resistance, and significantly extended service life. Using this Medium Frozen Meat Grinder effectively reduces blade replacement frequency and usage costs.
Multiple Safety Protection Systems
Standard features include overload protection, safety interlock mechanisms, and other multiple safety devices, comprehensively ensuring the safety of operators and equipment. The safety design of this Medium Frozen Meat Grinder gives users peace of mind.
Well-Known Brand Core Components
Core electrical components (Chint), main motor (Shandong Kaiyuan), and reducer (Qingdao Wantong) are all selected from well-known domestic brands, featuring stable operation, low failure rates, and suitability for long-term continuous production. The industrial-grade configuration of this medium-sized Medium Frozen Meat Grinder ensures continuous operation of the production line.
SUS304 Stainless Steel Arc-Shaped Body
The entire machine is made of food-grade SUS304 stainless steel. The arc-shaped design leaves no hygiene dead corners, making it easy to clean and corrosion-resistant, in compliance with EU food hygiene standards. The hygienic design of this Medium Frozen Meat Grinder meets global food workshop regulations.
III. Model Details and Technical Parameters

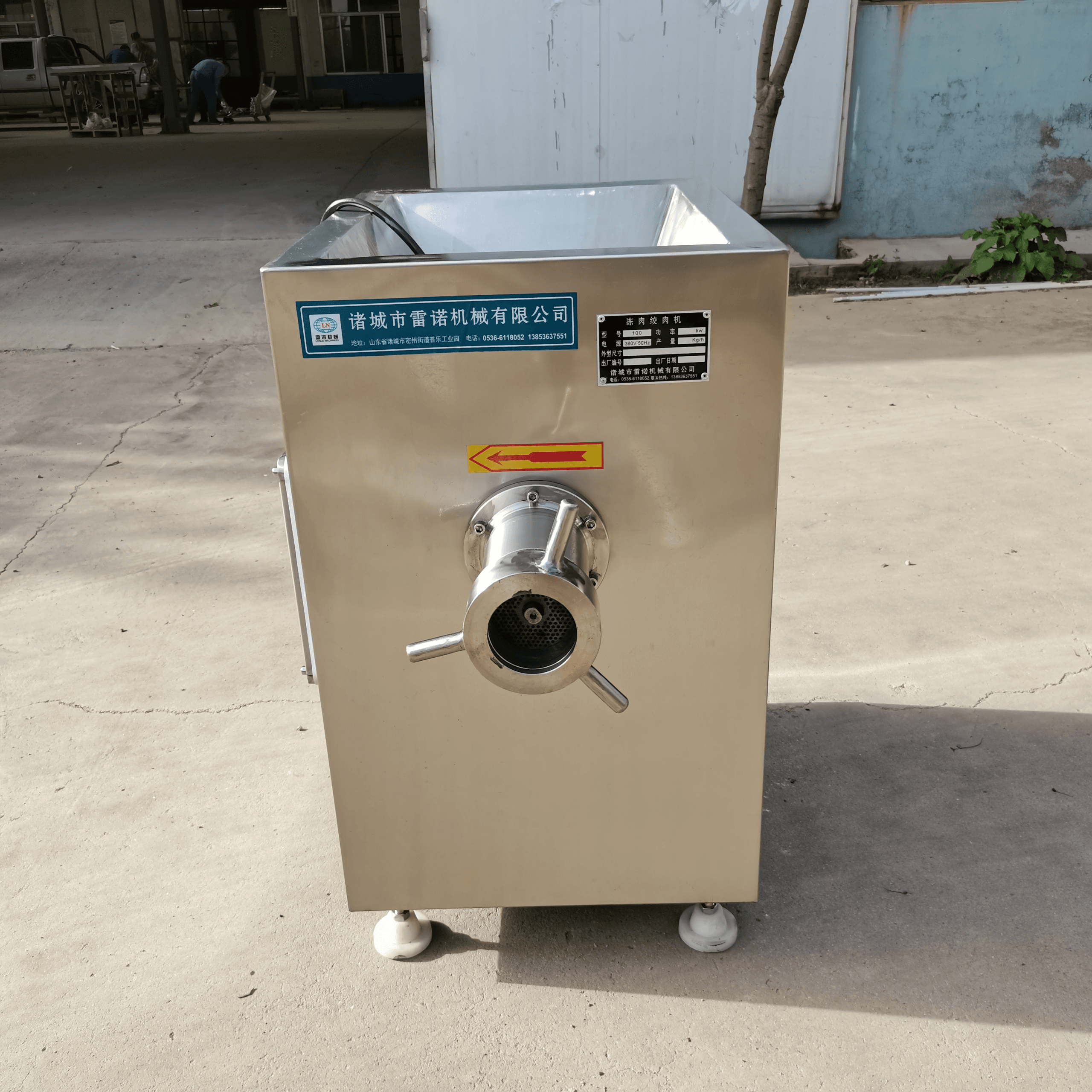

JR-100 Frozen Meat Grinder
| Parameter Item | Specification |
|---|---|
| Series | Small |
| Dimensions (L×W×H) | 900×550×1000 mm |
| Weight | 175 kg (386 lbs) |
| Voltage | 3-phase. 50 Hz: 380 / 400 / 415 V | 60 Hz: 208 / 240 / 480 V. Voltage to be confirmed against your site supply. |
| Total Power | 4 KW (5.36 HP) |
| Capacity | 500 kg/h (0.5 t/h; 1102 lbs/h) |
| Blade/Cutting Plate Diameter | 100 mm |
| Sieve Hole Diameter | 4-22mm optional |
| Max Feeding Size | 1 kg whole frozen block |
| Waterproof Rating | IPX4 |
JR-120 Frozen Meat Grinder
| Parameter Item | Specification |
|---|---|
| Series | Small |
| Dimensions (L×W×H) | 1050×600×1050 mm |
| Weight | 198 kg (437 lbs) |
| Voltage | 3-phase. 50 Hz: 380 / 400 / 415 V | 60 Hz: 208 / 240 / 480 V. Voltage to be confirmed against your site supply. |
| Total Power | 7.5 KW (10.06 HP) |
| Capacity | 1000 kg/h (1 t/h; 2205 lbs/h) |
| Blade/Cutting Plate Diameter | 120 mm |
| Sieve Hole Diameter | 4-22mm optional |
| Max Feeding Size | 2.5 kg whole frozen block |
JR-130 Frozen Meat Grinder
| Parameter Item | Specification |
|---|---|
| Series | Small |
| Dimensions (L×W×H) | 1450×700×1050 mm |
| Weight | 465 kg (1025 lbs) |
| Voltage | 3-phase. 50 Hz: 380 / 400 / 415 V | 60 Hz: 208 / 240 / 480 V. Voltage to be confirmed against your site supply. |
| Total Power | 15 KW (20.12 HP) |
| Capacity | 2000 kg/h (2 t/h; 4409 lbs/h) |
| Sieve Hole Diameter | 4-22mm optional |
| Max Feeding Size | 10 kg whole frozen block |
JR-160 Frozen Meat Grinder
| Parameter Item | Specification |
|---|---|
| Series | Small |
| Dimensions (L×W×H) | 1500×800×1200 mm |
| Weight | 520 kg (1146 lbs) |
| Voltage | 3-phase. 50 Hz: 380 / 400 / 415 V | 60 Hz: 208 / 240 / 480 V. Voltage to be confirmed against your site supply. |
| Total Power | 18 KW (24.14 HP) |
| Capacity | 3000 kg/h (3 t/h; 6614 lbs/h) |
| Blade/Cutting Plate Diameter | 160 mm |
| Sieve Hole Diameter | 4-22mm optional |
| Max Feeding Size | 15 kg whole frozen block |
Note: The above parameters are reference values for standard models. Sieve hole specifications can be customized according to customer requirements.
IV. Model Comparison Quick View
| Model | Series | Capacity | Total Power | Horsepower | Blade Diameter | Sieve Diameter | Max Frozen Block | Weight |
|---|---|---|---|---|---|---|---|---|
| JR-100 | Small | 500 kg/h | 4 KW | 5.36 HP | 100 mm | 4-22mm optional | 1 kg | 175 kg |
| JR-120 | Small | 1000 kg/h | 7.5 KW | 10.06 HP | 120 mm | 4-22mm optional | 2.5 kg | 198 kg |
| JR-130 | Small | 2000 kg/h | 15 KW | 20.12 HP | 130 mm | 4-22mm optional | 10 kg | 465 kg |
| JR-160 | Small | 3000 kg/h | 18 KW | 24.14 HP | 160 mm | 4-22mm optional | 15 kg | 520 kg |
V. General Advantages & Export Qualifications
- Hygienic Material: Main food-contact parts are made of food-grade SUS304 stainless steel with an arc-shaped, dead-corner-free design, complying with EU standards.
- Core Components: Electronic controls, motors, and reducers are all from well-known domestic brands, ensuring stable quality.
- Safe & Easy to Use: Quick-release structure for easy cleaning, multiple safety protection mechanisms, and simple and safe operation.
- Blade Craftsmanship: Premium SKD-11 blade material across the series, paired with mature Dutch CFS blade-making technology, providing wear resistance and high efficiency.
- Compliant Export: The equipment is equipped with EU CE certification, US FDA factory registration, and multiple utility model patents, allowing for global export.
- One-Stop Service: Our factory operates with an integration of manufacturing and trading. We provide equipment customization, export documentation, on-site installation, and technical training.
VI. Application Scenarios
Small and medium-sized meat processing plants, pet food processing plants, central kitchens, fresh supermarket processing rooms, deli shops, and sausage/meatball processing workshops.
No matter which segmented industry you are in, this Medium Frozen Meat Grinder can provide you with efficient and stable frozen meat grinding solutions.
VII. Contact Us
For detailed equipment quotations, live-action videos of the JR Series Medium Frozen Meat Grinder, or complete line supporting solutions, please contact us via the website form or contact information. Our engineers will provide free technical consultation and detailed quotations within 24 hours.
← Back to the meat grinder range
Contact Us Now for Free Solutions and Quotations!
- Equipment customization service (blade assembly/sieve hole specification customization)
- Full set of export documents and customs clearance support
- On-site installation, commissioning, and operation training
- Lifetime original factory spare parts supply and technical consultation
- The execution standard of this Medium Frozen Meat Grinder refers to the relevant requirements of GB 16798-1997 Food Machinery Safety and Hygiene Standard
