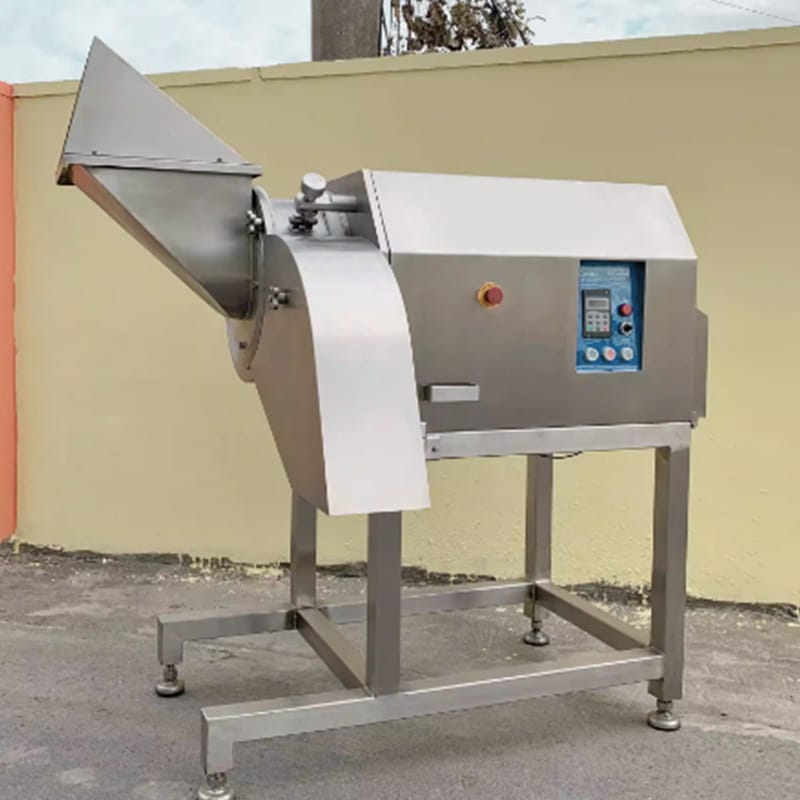

Frozen Meat 3D Dicer Product Overview
The whole frozen meat 3d dicer is integrally made of food-grade SUS304 stainless steel.
The solid structure brings long service life, and there are no sanitary dead corners for easy cleaning.
This frozen meat 3d dicer directly processes frozen meat between -10℃ and 0℃.
It realizes 3D one-step cutting, producing frozen meat dices, strips and slices in one single run.
It realizes 3D one-step cutting, producing frozen meat dices, strips and slices in one single run.
Multiple cutting sizes from 5mm to 25mm are available for switching.
Variable frequency speed control supports different production output requirements.
Variable frequency speed control supports different production output requirements.
The max feed size is 200×200×200mm. Its processing capacity ranges from 800 to 3000kg per hour.
This frozen meat 3d dicer fits mass production perfectly.
It serves large meat processing factories, pet diced meat snack production, prepared dishes and braised food workshops.
All sets of this cutting machine are equipped with CE and FDA export certifications.
It serves large meat processing factories, pet diced meat snack production, prepared dishes and braised food workshops.
All sets of this cutting machine are equipped with CE and FDA export certifications.
Core Advantages
Full SUS304 Stainless Steel Body
The whole frozen meat 3d dicer adopts food-grade stainless steel construction.
It resists corrosion and can be rinsed quickly, fully matching food workshop hygiene standards.
The stainless steel design greatly extends the machine’s service cycle.
It resists corrosion and can be rinsed quickly, fully matching food workshop hygiene standards.
The stainless steel design greatly extends the machine’s service cycle.
Integrated 3D Cutting, One-Shot Dice / Strip / Slice Forming
The 3D blade groups of this frozen meat 3d dicer cut synchronously without secondary processing.
One machine can complete dicing, strip cutting and slicing for frozen meat.
It largely raises overall production efficiency and cuts labor costs.
One machine can complete dicing, strip cutting and slicing for frozen meat.
It largely raises overall production efficiency and cuts labor costs.
Wide Compatibility for Frozen Raw Materials
This frozen meat 3d dicer handles frozen meat blocks below 130mm at -10℃~0℃.
No complete thawing is required before cutting.
It saves thawing space in cold storage and shortens pre-processing time.
No complete thawing is required before cutting.
It saves thawing space in cold storage and shortens pre-processing time.
Optional Multi-Size Blade Sets
Standard cutting specifications include 5/8/10/12/15/20/25mm.
Interchangeable blade assemblies match production of meatballs, sausages, pet food and conditioning packages.
You can customize blade sizes according to your finished product demands.
Interchangeable blade assemblies match production of meatballs, sausages, pet food and conditioning packages.
You can customize blade sizes according to your finished product demands.
Stepless Variable Frequency Speed Control System
An inverter adjusts the cutting speed of the frozen meat 3d dicer flexibly.
Users can set speed based on raw material hardness and target particle size.
The machine runs stably with low noise during long continuous operation.
Users can set speed based on raw material hardness and target particle size.
The machine runs stably with low noise during long continuous operation.
Recommended Precise Temperature Control for Consistent Product Appearance
3–10mm dices: Optimal raw meat temperature -5~-8℃
10–15mm dices: Optimal raw meat temperature -4~-6℃
15–20mm dices: Optimal raw meat temperature -2~-5℃
10–15mm dices: Optimal raw meat temperature -4~-6℃
15–20mm dices: Optimal raw meat temperature -2~-5℃
Low-temperature cutting of this frozen meat 3d dicer reduces grease separation and material sticking.
All cut pieces feature neat edges without excess fine scraps.
All cut pieces feature neat edges without excess fine scraps.
Large Feed Opening for Convenient Loading
The maximum feed dimension reaches 200×200×200mm.
Whole frozen meat blocks can be put directly without pre-cutting, saving preparation work.
Whole frozen meat blocks can be put directly without pre-cutting, saving preparation work.
The machine has a lightweight main body and takes up limited floor space.
Its discharge height matches standard assembly line height.It can be connected with downstream mixing machines and tumblers to build a fully automatic production line.
Its discharge height matches standard assembly line height.It can be connected with downstream mixing machines and tumblers to build a fully automatic production line.
Technical Parameters
Model: Frozen Meat 3D Dicer
Overall Dimensions (L×W×H): 1750×1250×1600 mm
Feed Height: 1310 mm
Discharge Height: 385 mm
Motor Power: 2HP
Speed Regulation: Inverter stepless speed control
Applicable Raw Material Temperature: -10℃ ~ -5℃
Standard Cutting Sizes: 5/8/10/12/15/20/25 mm
Production Capacity: 800 ~ 3000 KG / hour
Net Machine Weight: 282 KG
Overall Dimensions (L×W×H): 1750×1250×1600 mm
Feed Height: 1310 mm
Discharge Height: 385 mm
Motor Power: 2HP
Speed Regulation: Inverter stepless speed control
Applicable Raw Material Temperature: -10℃ ~ -5℃
Standard Cutting Sizes: 5/8/10/12/15/20/25 mm
Production Capacity: 800 ~ 3000 KG / hour
Net Machine Weight: 282 KG
Applicable Industries
This frozen meat 3d dicer is widely used in multiple industrial scenarios:
- Large-scale frozen meat deep processing plants
- Pet diced and strip meat snack production lines
- Central kitchens for ready-to-cook meals
- Factories producing braised cooked food
- Frozen conditioning package processing workshops
- Large sausage and meatball manufacturing plants
Certifications & Supporting Services
Our factory holds EU CE machinery certification and US FDA facility registration.
We also own multiple utility model patents for food processing equipment including this frozen meat 3d dicer.
We also own multiple utility model patents for food processing equipment including this frozen meat 3d dicer.
We integrate machinery manufacturing and foreign trade business.
We provide all-round one-stop supporting services for global buyers:
Custom blade size adjustment, complete export customs documents, on-site installation and commissioning.
We also supply original spare parts for the whole service life of the machine.
We provide all-round one-stop supporting services for global buyers:
Custom blade size adjustment, complete export customs documents, on-site installation and commissioning.
We also supply original spare parts for the whole service life of the machine.
Feel free to submit inquiries via the website contact form.
We can send you machine operation test videos, detailed quotations and full production line matching plans.
We can send you machine operation test videos, detailed quotations and full production line matching plans.
