Product Overview

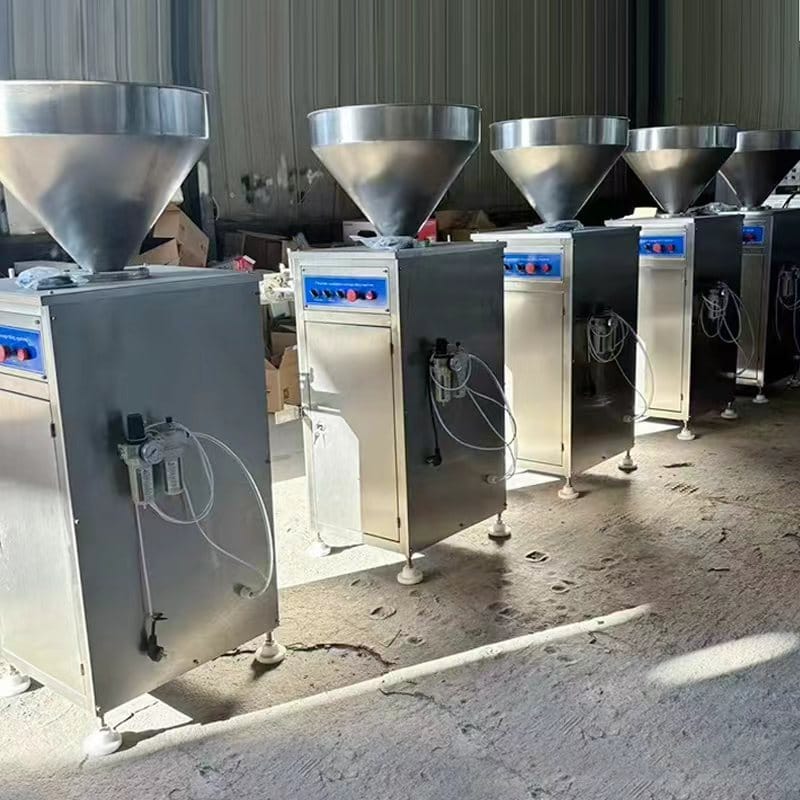

Our Pneumatic Quantitative Sausage Filler is fully driven by pneumatic pistons. All filling movements rely on compressed air, removing complex electrical explosion‑proof modification and fitting workshops with explosion‑proof requirements. Wetted components adopt food‑grade SUS304 stainless steel. This Pneumatic Quantitative Sausage Filler handles liquid, semi‑fluid and paste materials with metering range from 10ml to 5000ml and stable filling accuracy of ±0.5ml. It supports foot‑pedal manual and automatic filling dual‑mode switch. Featuring simple structure and ultra‑low failure rate, it is widely used in sauce factories, deli workshops and pet food processing plants with CE export certification.
Core Advantages
Full Pneumatic Drive, Explosion‑Proof Safe Operation
Actuators work with 0.4‑0.6Mpa compressed air without high‑power electric parts. It can be deployed directly in flammable and explosive production sites with excellent safety performance.
Hard‑Limit Piston Metering, Superior Filling Precision
Precision piston hard‑stop positioning controls filling error within ±0.5ml, full‑scale error ≤±1%. Batch filling weight keeps consistent, reducing raw material waste effectively.
Dual Switchable Operation Modes
Foot‑pedal jog filling suits small‑batch frequent product change‑over; continuous automatic filling matches assembly‑line mass production. One‑click mode switch without extra adjustment.
Emergency Stop Safety Protection
Pneumatic valve cuts off under emergency conditions. The piston retracts automatically and discharge stops instantly to avoid overflow and material loss for safer workshop operation.
Multiple Optional Filling Ranges, Wide Compatibility
Available metering ranges cover 10‑100ml up to 500‑5000ml. Filling volume can be adjusted quickly by replacing limit blocks for multi‑spec production on one machine.
Wide Material Compatibility
Suitable for liquid, semi‑fluid and high‑viscosity paste: salad dressing, meat sauce, hot pot base, meat filling, wet pet food paste, syrup, edible oil and various condiments.
Stainless Steel Build, Easy Cleaning & Low Maintenance
Integrated stainless steel frame. Hopper and piston cylinder can be quickly disassembled for rinsing. Stable pneumatic components realize low failure rate for long‑time continuous running and low maintenance cost.
Technical Parameters
Parameter Item | Value |
|---|---|
Power Supply | 220V 50Hz (low‑voltage control circuit only) |
Rated Working Air Pressure | 0.4‑0.6Mpa |
Filling Accuracy | ±0.5ml (total error ≤±1% FS) |
Filling Speed | 1‑20 bottles/min (depends on volume & viscosity) |
Air Inlet Pipe Diameter | 8mm |
Control Mode | automatic / foot pedal dual‑mode |
Applicable Materials | Liquid, semi‑fluid, paste fillings & sauces |
Working Structure | Pneumatic‑electric integrated |
Optional Metering Ranges | 10‑100ml, 20‑200ml, 30‑300ml, 50‑500ml, 100‑1000ml, 260‑2600ml, 350‑3500ml, 500‑5000ml |
Applicable Industries & Materials
Processable Materials
Various sauces, meat fillings, wet pet food paste, hot pot base, salad dressing, honey, edible oil, seasoning broth, fruit puree and high‑viscosity paste food.
Application Scenarios
Fresh deli workshops, small condiment factories, pet snack filling workshops, prepared‑food sauce repackaging workshops, daily‑chemical explosion‑proof filling workshops.
Certifications & Supporting Services
Our factory holds EU CE mechanical certification. As integrated manufacturing & foreign trade enterprise, our Pneumatic Quantitative Sausage Filler supports customized filling ranges, extended hoppers and nozzles. We supply complete export documents, on‑site commissioning and lifelong spare‑parts supply for piston seals and pneumatic valves.
Contact our engineers via website form for quotations, filling operation videos and small production line matching schemes.
