Automatic Pet Wet Food Production Line Product Overview

This fully‑automatic pet wet food production line is a turn‑key complete processing solution developed by LongerFM for full‑range soft‑packed and canned pet wet food, including cat strips, metal pet cans, three‑side‑seal fresh pouches and aluminium‑foil stand‑up pouches.

It meets mass‑production and standard‑manufacturing requirements for both start‑up workshops and large‑scale pet food enterprises.

Built on proven meat pre‑processing technology, the whole line takes ‑18 °C frozen pork, beef, chicken, duck and livestock offal as main raw materials. Adopting modular linkage and PLC intelligent central control, the line realizes fully‑automatic continuous operation. Manual material transfer is largely reduced, cutting labour costs and lowering the risk of cross‑contamination.

Automatic Pet Wet Food Production Line Standard Production Process

Frozen meat unpacking & feeding → Chain‑plate elevator feeding → Frozen meat grinder fine grinding → Horizontal vacuum stuffing mixer seasoning & homogenization → Fully‑automatic filling & packaging unit → Batch‑type / continuous pasteurizer → Cooling & air‑drying → Finished‑product inspection & sorting → Warehousing & delivery

1、Raw Material Pre‑processing Section

Operators unpack frozen meat blocks on the work platform, and the chain‑plate elevator feeds material into the frozen meat grinder. Whole frozen blocks can be crushed without pre‑thawing, saving thawing workshop space and energy consumption.

Grinding particle size is adjustable to produce fine meat paste for cat strips as well as meat chunks for pet cans.

2、Mixing & Homogenization Section

The vacuum stuffing mixer works under negative pressure to remove air bubbles from meat paste. Meat materials, broth, vitamins and nutritional additives are fully blended without delamination, delivering bright colour and high palatability.

It effectively solves common industry pain points such as water separation in cat strips and layered content in cans.

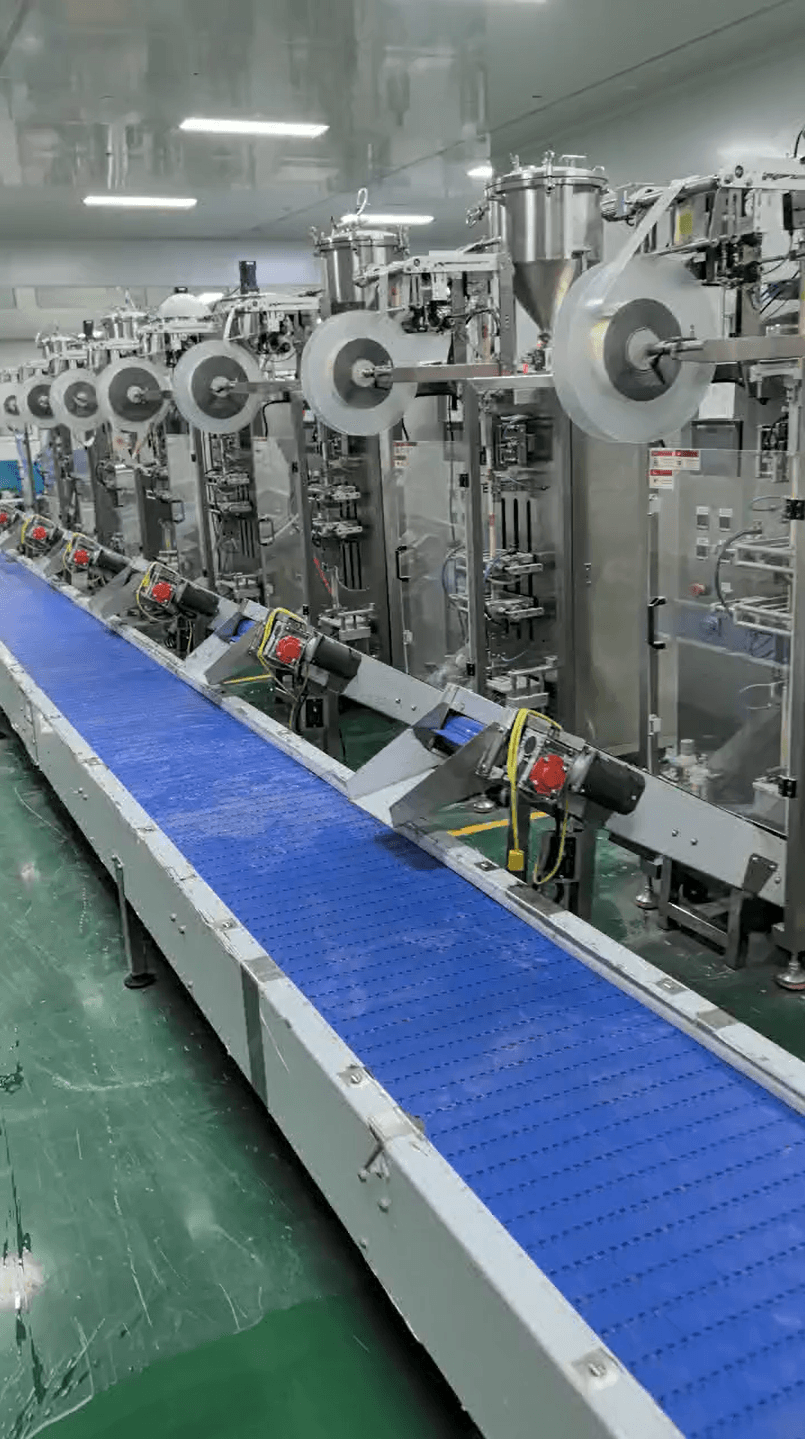

3、Filling & Packaging Section

Modular packaging units allow fast mould switching to handle four mainstream packaging formats: long cat‑strip sachets, retort fresh pouches, stand‑up spout pouches, and round / square metal cans.

Servo‑driven filling achieves ±1 g accuracy. Double‑sealing for three‑side‑seal / four‑side‑seal packs and can crimping prevent leakage, suitable for filling high‑moisture meat paste and chunk‑containing broth wet food.

4、Sterilization & Preservation Section

Equipped with spray‑type pasteurizers with precise temperature control at 121 °C‑135 °C. Custom sterilization profiles are applied for soft packs and metal cans to avoid bag bursting and product deformation.

A waste‑heat recovery system reduces steam consumption by around 30 % during long‑run production. Products are automatically air‑cooled and air‑dried to remove surface water stains after sterilization.

5、Finished‑product Inspection & Delivery

Combined metal detector and weight checker automatically reject defective goods with leaking seals, insufficient weight or metallic foreign bodies. Qualified products are conveyed directly to the warehouse area.

Main Line Configuration & Material Standard

All chambers, hoppers, cutting blades, mixing paddles and conveyor belts in direct contact with meat, meat paste and soup adopt food‑grade SUS304 stainless steel, complying with FDA and HACCP international food‑hygiene standards.

Machine frames and supporting structures use 201 stainless steel to balance procurement cost without compromising food‑production safety.

A standard bilingual PLC touch‑screen control cabinet is included. More than 100 sets of product recipes can be stored and quickly recalled for cat‑strip, can and fresh‑pouch production. Voltage and frequency are customizable to match global power supplies: 220V/60Hz, 415V/50Hz, 440V/60Hz and more.

Available Custom Capacity

Modular standard capacities: 500 kg/h, 1000 kg/h, 2000 kg/h, 3000 kg/h. Unit length can be adjusted, and multiple packaging / sterilization machines can be paralleled according to workshop layout and daily output. Compact layout solutions are available for factories with limited floor space.

Automatic Pet Wet Food Production Line Key Advantages

1、Multi‑product flexible production

Without replacing core pre‑processing equipment, you can switch between cat‑strip treats, staple‑food cans, broth‑style fresh pouches and stand‑up‑pouch wet food simply by changing packaging moulds and sterilization parameters.

Investment in multiple separate production lines can be avoided.

2、Stable filling & sealing for extended shelf‑life

Servo precision filling together with multi‑layer heat sealing ensures leak‑free packaging. Custom pasteurization gently preserves meat protein, amino acids and natural flavours. Finished goods can achieve 18‑36‑month shelf‑life at room temperature without excessive preservatives.

3、Hygienic design for easy cleaning & audit compliance

Processing components are quick‑detachable with no dead corners for residue build‑up. High‑pressure water‑gun washing is supported; routine cleaning can be finished within 15 minutes. The equipment supports food‑authority and customs inspection worldwide.

Complete CE certificates and material test reports are provided for customs clearance.

4、Low failure rate for long‑term continuous operation

Core motors and electrical components adopt internationally‑renowned brands. Reinforced machine frames support 24‑hour non‑stop industrial‑scale production. Spare‑parts are kept in stock and supplied at factory cost throughout equipment service life.

5、Complete turn‑key delivery service

Full‑material test‑run is finished before shipment, and test‑run videos are delivered to clients. Free CAD workshop layout drawings together with water‑supply, power and steam layout proposals are supplied. Our engineers offer remote guidance for installation and commissioning.

Application Scenarios

Our Automatic Pet Wet Food Production Line Suitable for pet‑food manufacturers, OEM workshops and wet‑food production bases. Ideal for mass‑production of high‑meat‑content cat strips, kitten & adult‑cat staple cans, broth fresh pouches and large‑capacity stand‑up‑pouch wet food. The line can be expanded with bone‑mud machines and enzymatic hydrolysis tanks to produce functional high‑meat wet food.

After‑sales Support

1、1‑year full‑set warranty covering motors and core electric components.

2、Complete English operation manuals and troubleshooting tutorial videos, uploaded to our YouTube Factory Test Series.

3、7×24‑hour remote English‑language technical support for commissioning and fault solving via video call.

4、Overseas on‑site installation and full‑operator practical training available for large‑volume orders.

Call‑to‑action

If you need a tailored solution for the Automatic Pet Wet Food Production Line matching your target output, packaging types and workshop dimensions, our engineers will provide free customized layout drawings and detailed quotations within 24 hours.
