Product Overview

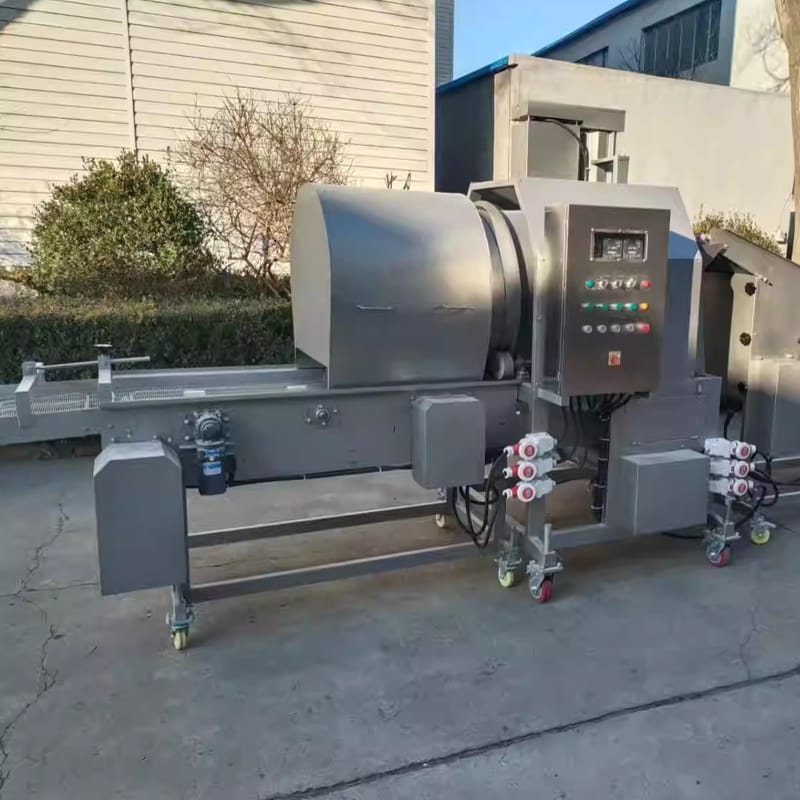

The continuous drum breading machine relies on continuous drum rotation to evenly attach dry powder onto the surface of block-shaped and irregular materials, forming flaky crispy outer coating. Suitable for breading processing of popcorn chicken, chicken nuggets, fish fillets, boneless chicken strips and various prepared meat products.
The whole machine adopts full food-grade SUS304 stainless steel. It is equipped with variable-frequency speed control conveyor, open spiral powder recycling system and built-in powder screening & grading unit. It can be directly connected to batter applicators and predusters to form seamless full automatic production lines without intermediate conveyor belts. Widely applied in production lines of quick-frozen prepared food and fried snack meat products, with CE export certification.
The whole machine adopts full food-grade SUS304 stainless steel. It is equipped with variable-frequency speed control conveyor, open spiral powder recycling system and built-in powder screening & grading unit. It can be directly connected to batter applicators and predusters to form seamless full automatic production lines without intermediate conveyor belts. Widely applied in production lines of quick-frozen prepared food and fried snack meat products, with CE export certification.
Core Advantages
Drum Tumbling Breading, Complete Powder Coverage on Recesses & Edges
Special horizontal drum tumbling structure. Materials roll fully inside the drum; dry powder evenly adheres to folds, concave and convex corners of products. The finished goods obtain intact flaky coating, fluffy and crispy after frying without exposed meat or insufficient powder.
Open Spiral Elevator for Powder Recovery, Easy Residue Recycling & Cleaning
Openable spiral powder lifting structure automatically recycles excess falling powder for cyclic reuse. The drum can be quickly opened and disassembled with no powder-hiding dead corners. Simple water rinsing completes cleaning and greatly reduces changeover cleaning labor hours.
Built-In Special Powder Sifter to Separate Lumps & Large Impurities
Independent screening unit automatically filters agglomerated powder lumps and coarse particles generated during operation. Only fine dry powder is recycled to guarantee smooth and uniform coating, avoiding rough black spots on finished products.
Seamless Connection With Upstream & Downstream Equipment, Eliminate Intermediate Transfer
Inlet and outlet heights match discharge ports of battering machines and secondary breaders. Direct equipment connection builds continuous automatic breading lines, reducing manual handling and material collision damage.
Variable-Frequency Mesh Belt Speed Control for Diverse Product Processes
Conveyor speed infinitely adjustable from 3–15m/min. Operators can adjust conveying speed according to size and thickness of chicken nuggets, fish strips and popcorn chicken to precisely control coating thickness and unify finished appearance standards.
Two Belt Width Models Cover Different Production Capacities
GFJ400 (400mm mesh belt) fits small & medium prepared food production lines; GFJ600 (600mm wide mesh belt) matches high-output ten-thousand-ton quick-frozen food factories. Compact machine structure fitted with mobile casters for flexible workshop layout.
Technical Parameters
| Parameter Item | GFJ400 | GFJ600 |
|---|---|---|
| Conveyor Running Speed | 3–15m/min variable frequency adjustable | 3–15m/min variable frequency adjustable |
| Total Machine Power | 2.45kw | 3.35kw |
| Effective Mesh Belt Width | 400mm | 600mm |
| Overall Dimension L×W×H (mm) | 4660×1500×2400 | 4660×1700×2400 |
Applicable Raw Materials & Industries
Processable Materials for Breading
Popcorn chicken, chicken nuggets, fish chunks, boneless chicken strips, quick-frozen prepared meat steaks, onion rings, block-shaped fried prefabricated ingredients
Applicable Factory Scenarios
Quick-frozen fried prepared food factories, central plants for western fried chicken semi-finished products, deep-processing workshops for snack meat products, full-automatic prepared food production lines
Certifications & Supporting Services
Our factory holds EU CE machinery certification and utility model patents for food machinery. As integrated manufacturing & foreign trade enterprise, we support customized extended machine frame, widened mesh belt and auxiliary automatic powder spreading mechanism. We provide full export customs documents, on-site installation & commissioning, lifelong supply of original spare parts including drums, mesh belts and spiral components.
Contact our engineers via website form for quotations, real drum breading operation videos and complete line matching schemes covering battering, breading and frying.
