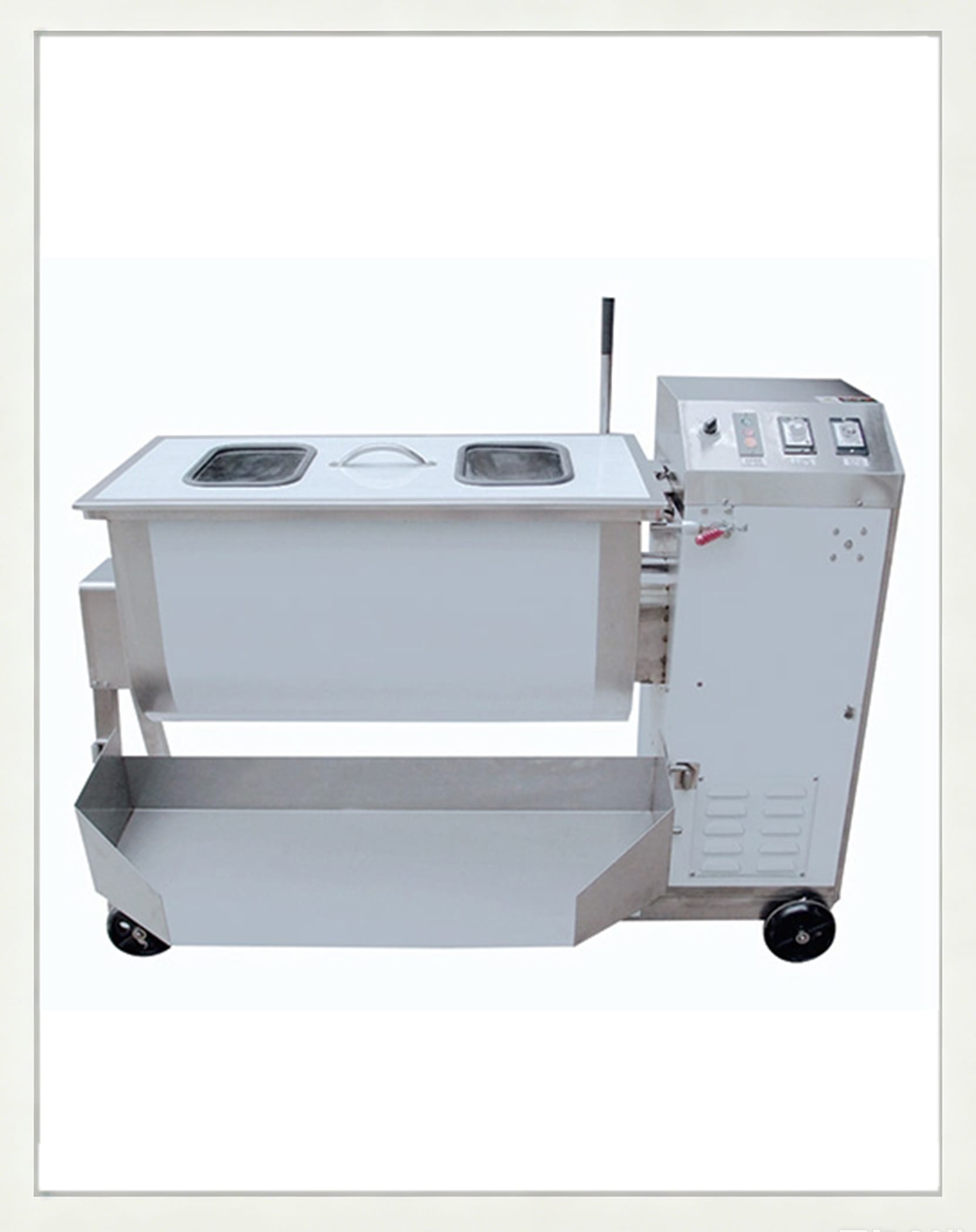

High-Low Shaft Mixer – Twin Auger Meat Filling Mixing Equipment
I. Equipment Overview
The high-low shaft mixer is developed with reference to international advanced equipment, combined with domestic meat processing technology. This high-low shaft mixer is suitable for uniform mixing of filling, bulk, and paste materials. Equipped with a specially designed fan paddle, this high-low shaft mixer simultaneously tenderizes and emulsifies the filling during mixing, resulting in improved viscosity and better elasticity after mixing. The high-low shaft mixer supports forward and reverse rotation to suit various mixing process requirements, with production efficiency superior to similar models on the market, making it a core supporting equipment for meatball, sausage, and cooked food processing.
The high-low shaft mixer features all contact parts and external body made of high-quality 304 stainless steel, complying with food hygiene standards. It is easy to disassemble and clean. Twin augers work synchronously to ensure uniform mixing without clumping, widely suitable for meat products and pet food filling processing.
II. Core Advantages
- High-low twin auger synchronous mixing: Thorough mixing without dry clumping or layering
- Fan paddle with tenderizing function: Improves meat filling elasticity and texture, increases yield
- Reversible rotation adjustable: Adapts to thin, thick, and granular fillings
- All stainless steel body: Smooth without sanitary dead corners, easy cleaning
- Multiple capacity options: From 50L small store model to 500L industrial production model
- Automatic tilting discharge: 50L/100L manual tilting, 200L/300L/500L automatic tilting for labor-saving operation
III. Technical Specifications
| Model | Capacity (kg) | Speed (r/min) | Voltage | Power (kW) | Dimensions (mm) | Weight (kg) | Discharge |
|---|---|---|---|---|---|---|---|
| 50L | 30-40 | 5-37 adj. | 220V | 0.55 | 1180×480×850 | 80 | Manual tilt |
| 100L | 70-100 | 5-37 adj. | 220V | 1.1 | 1360×600×890 | 150 | Manual tilt |
| 200L | 180-200 | 5-37 adj. | 380V | 1.5 | 1610×760×1020 | 275 | Auto tilt |
| 300L | 260-300 | 5-37 adj. | 380V | 2.2 | 1690×840×1100 | 460 | Auto tilt |
| 500L | 450-500 | 5-37 adj. | 380V | 4 | 1930×960×1260 | 630 | Auto tilt |
Note: The above parameters are reference values for standard models. Customization is available based on customer requirements.
IV. Application Industries
- Frozen food plants: Fish balls, beef balls, stuffed meatball filling mixing
- Sausage and cooked food processing plants: Red sausage, grilled sausage, luncheon meat filling mixing
- Pet food plants: Bone-meat paste, pet snack filling mixing
- Central kitchens, fresh processing stores, small meat product workshops
The high-low shaft mixer is manufactured in compliance with food machinery safety standards, ensuring equipment quality and reliability at an international level.
V. Related Equipment
Commercial meat grinder, vacuum cutter, meatball forming machine, fully automatic smoking oven.
The high-low shaft mixer is designed and manufactured in accordance with ISO 9001 quality management system standards, ensuring world-class quality and reliability.
VI. Contact Us
For a customized high-low shaft mixer solution tailored to your capacity and filling processing requirements, our engineers will provide free technical consultation and a detailed quotation within 24 hours.
Contact us today for a free consultation and customized solution!
