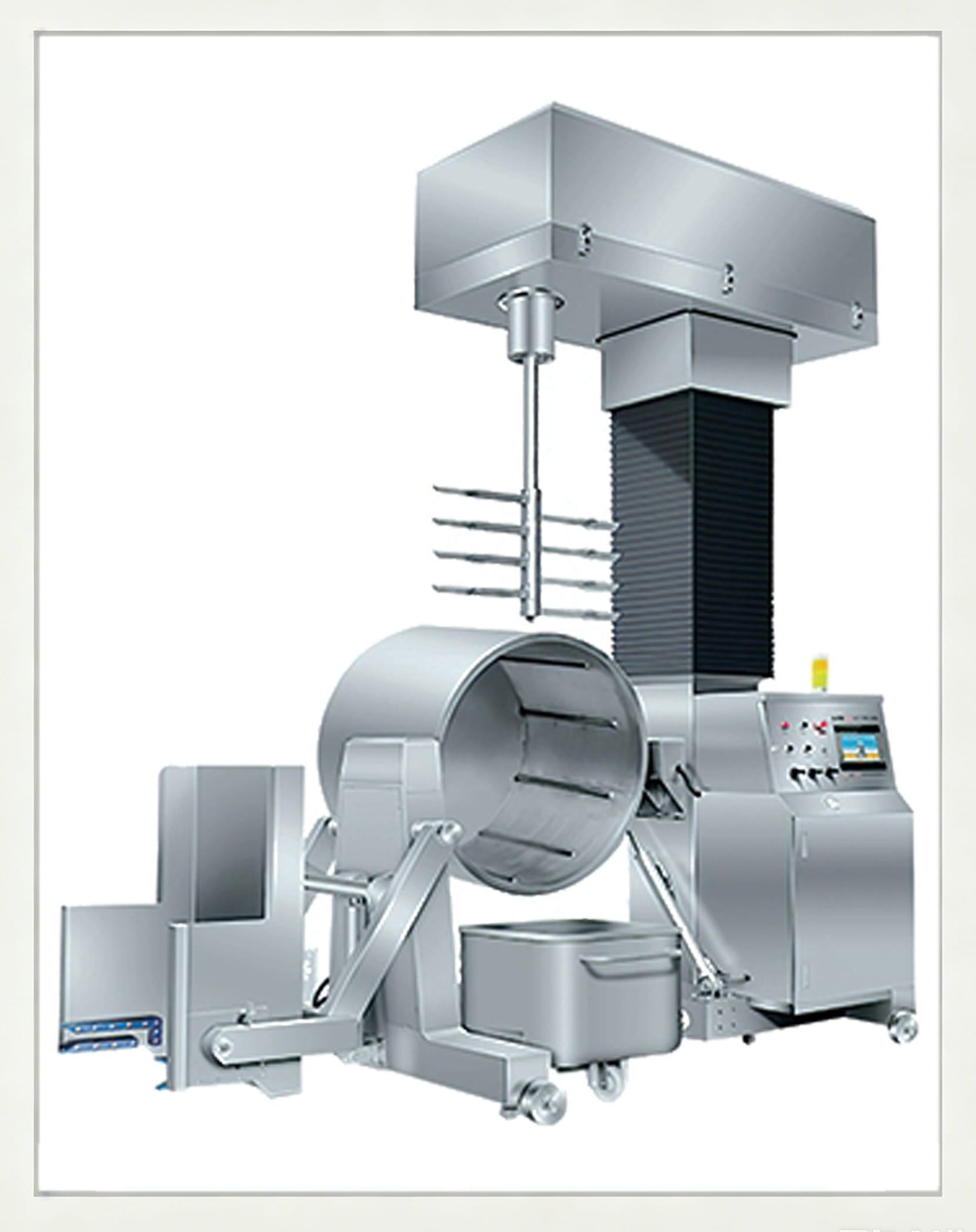

High Speed Beating MachineFull Product Introduction
1. Product Overview
The high speed beating machine is professional industrial equipment for meat beating, fiber refining and meat paste emulsification. Adopting variable-frequency spiral gearbox transmission, this high speed beating machine features low energy consumption and eco-friendly stable operation.
Equipped with a stepless speed regulation system and special twisted rib beating blades, the high speed beating machine fully refines meat fibers and releases animal protein during operation. It allows meat paste to fully absorb seasoning brine, producing tender, springy, uniform and smooth finished meat products.
This high speed beating machine delivers stable low-speed stirring force. The narrow gap between the tank body and blades effectively reduces material residue. Forward and reverse bidirectional beating realizes all-round mixing without dead mixing zones.
The whole high speed beating machine adopts premium SUS304 food-grade stainless steel construction. Outer and bottom circulating cooling devices keep meat paste low-temperature fresh during continuous processing.
Compared with traditional manual pounding, the high speed beating machine delivers finer, brighter and more elastic meat paste, perfectly suitable for making high-quality fish balls and various meatballs. It independently completes full workflows of meat beating, ingredient adding and paste mixing for automated production.
Our high speed beating machine passes strict industry certification, including CE, ISO9001 and FDA qualifications. All materials and production processes comply with global food hygiene standards, supporting export trade and international factory audits.
2. Equipment Features
Food-Grade SUS304 Stainless Steel Build The high speed beating machine is fully constructed with food-grade stainless steel, free of sanitary dead corners. It supports quick disassembly and thorough cleaning, fully meeting global food processing and export hygiene standards.
Constant Temperature Circulating Cooling System Tank jacket and bottom circulating cooling structure of the high speed beating machine effectively lowers operating temperature. It prevents meat paste deterioration, retaining the original freshness and delicate taste of raw meat materials.
Variable Frequency Spiral Gear Transmission This high speed beating machine adopts spiral gearbox drive with stepless speed adjustment. It outputs stable power with ultra-low noise and low power consumption, suitable for long-time continuous industrial operation.
Professional Twisted Rib Beating Blades Custom twisted rib blades of the high speed beating machine evenly break meat fibers and precipitate active animal protein. Finished meatballs are bright white, tender and highly elastic with stable product quality.
Zero-Dead-Zone Bidirectional Mixing Precise gap design minimizes material residue. Forward and reverse dual stirring mode ensures homogeneous blending of meat paste and ingredients, avoiding uneven taste and texture of finished products.
Dual Series & Full Model Coverage The high speed beating machine provides standard and large hydraulic two series, with 6 complete models. It flexibly adapts to small workshop trial production and large-scale factory mass production.
Complete Production Line Compatibility This high speed beating machine can be perfectly matched with meat grinders, meatball forming machines and vacuum stuffing mixers to build fully automatic fish ball and meatball processing lines.
3. Technical Parameters
Hydraulic Version
Model | Main Motor Power | Hydraulic Power | Power Supply | Single Batch Capacity | Overall Dimension (mm) | Net Weight (kg) |
|---|---|---|---|---|---|---|
DJ-350 | 30kw | 1.5kw | 380V/50Hz | 350kg (Tank φ880 × Depth 700) | 1980×1150×2200 | 2400 |
DJ-500 | 47kw | 1.5kw | 380V/50Hz | 500kg (Tank φ1100 × Depth 700) | 2100×1350×2450 | 2800 |
Standard Version
Model | Motor Power | Power Supply | Single Batch Capacity (kg) | Overall Dimension (mm) | Net Weight (kg) |
|---|---|---|---|---|---|
DJ-100 | 7.5kw | 380V/50Hz | 80 | 1700×650×1650 | 750 |
DJ-150 | 15kw | 380V/50Hz | 100 | 1800×950×1950 | 1200 |
DJ-200 | 18.5kw | 380V/50Hz | 170 | 1900×980×1950 | 1500 |
DJ-250 | 22kw | 380V/50Hz | 180 | 2050×1080×1950 | 1800 |
DJ-350 | 31.5kw | 380V/50Hz | 350 | 2080×1350×2230 | 2800 |
DJ-500 | 47.5kw | 380V/50Hz | 500 | 2416×1411×2505 | 3600 |
4. Applicable Industries
This versatile high speed beating machine serves multiple food processing scenarios:
Quick-Frozen Food Factories: Professional beating and emulsification for fish balls, beef balls, pork balls, shrimp balls and all kinds of hot pot meatballs.
Central Kitchens & Catering Stores: Meet daily processing demands of fresh, high-elasticity handmade meatballs and aquatic ball products.
Pet Snack Factories: Refine and mix meat paste to produce tender, elastic raw materials for various pet meat snacks.
5. Matching Equipment
Commercial Meat Grinder, Vacuum Bowl Cutter, High-Low Shaft Stuffing Mixer, Meatball Forming Machine, Horizontal Drum Mixer
Certifications & Service Support
Our high speed beating machine is manufactured under strict ISO9001 quality management system. All models are equipped with EU CE mechanical safety certification and comply with US FDA food-grade material standards, ensuring safe and standardized production for global food and pet food factories.
We provide one-stop export services including non-standard customization, complete customs clearance documents, on-site installation and commissioning, and lifelong original spare parts supply for all high speed beating machine models.
